Parameters：

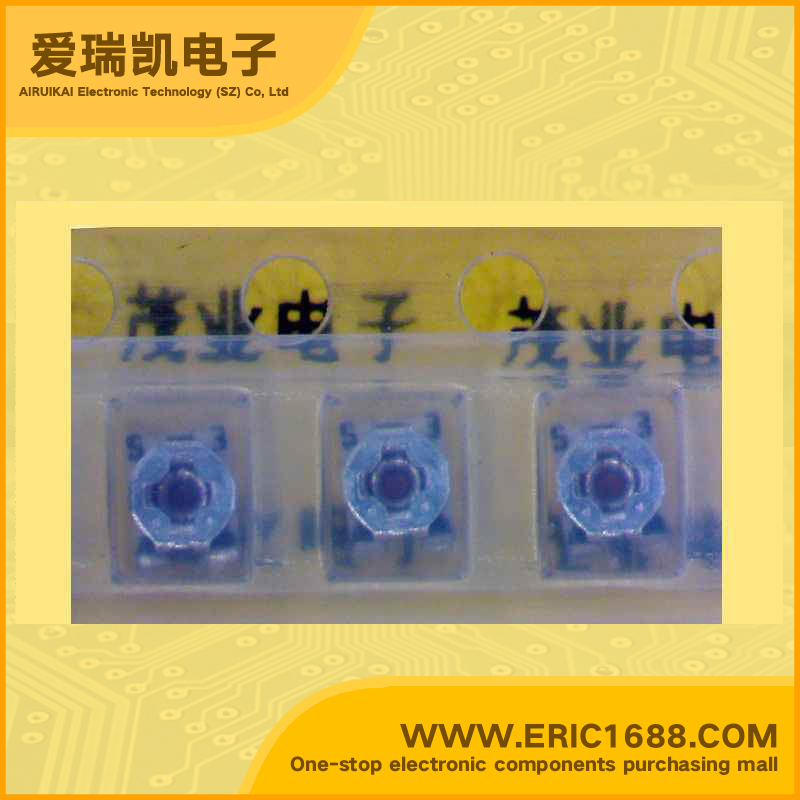

  • Model：MVR22HXBRN473
  • Manufacturer：HUABAN
  • Date Code：03+
  • Standard Package：2000
  • Min Order：10
  • Mark/silk print/code/type：S4
  • Package：2X2-47K

电阻值
Resistance		 47KΩ/Ohm
额定功率
Power		 0.05W，1/20W
容差
Tolerance		 ±25%
温度系数
Temperature Coefficient		 ±100ppm/°C
圈数
Number of Turns		 单圈 Single
调节类型
Adjustment Type		 顶部调节 Top Adjustment
端子类型
Termination Style		 J引线 J Lead
Description & Applications Chip trimmer potentiometers Features 1) Extremely small size and light weight facilitate the assembly of light, thinner, and smaller equipment. 2) Close match between wiper and resistive element reduces wiper noise. 3) Ruthenium oxide resistor material, with superb stability and resistance to humidity and the elements, offers the same outstanding reliability of our existing product (MVR32). 4) Smoother and larger suction surface offers the same ease of mounting as that of the MVR32 chip. 5) Open design for reflow soldering. 6) Cross groove for easy adjustment. 7) Protective film prevents short circuits due to terminal contact. 8) The wiper is fully rotated during testing to guarantee its performance.
描述与应用 贴片微调电位器 1）体积小，重量轻，便于组装轻，更薄，更小的设备。 2）缩小微调和电阻元件之间隙，噪音降低。 3）氧化钌电阻材料，具有极好的稳定性和耐湿性的元素，提供 我们现有的产品同样出色的可靠性 （MVR32）。 4）平滑和更大的吸力面提供了相同的易于安装的的MVR32芯片。 5）开放式设计回流焊。 6）十字槽，便于调节。 7）保护膜防止短路，由于终端接触。 8）微调完全在测试过程中旋转，以保证其性能。

×
