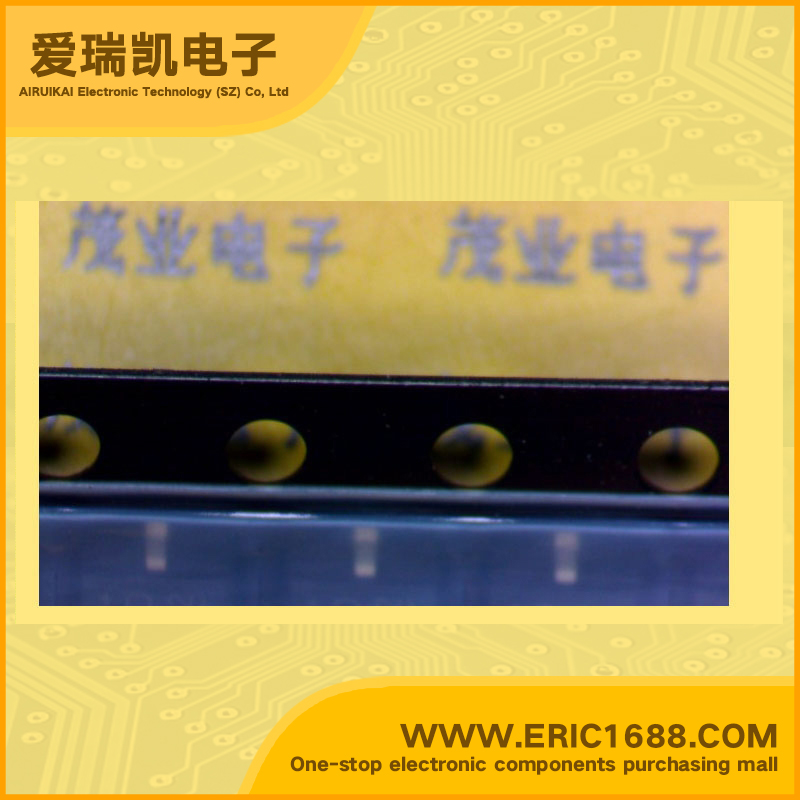

1PS59SB10 Schottky barrier diodes 30V 200mA/0.2A 800mV/0.8V SOT-23/SC-59 marking 10 fast switch

Model：1PS59SB10
Mark / screen / code / typing：10
Manufacturer：
Date Code：05+1R03NOPB 03+ROHS3KM
Package：SOT-23
Standard Package：3000
Min Order：10

Hot selling goods

Product description

Reverse Voltage(Vr)	30V
Average Rectified Current(Io)	200MA/0.2A
Forward Voltage(Vf)	800MV/0.8V
Junction capacitance(Cj)
Power Dissipation （Pd）	250MW/0.25W
Description & Applications	FEATURES • Low forward voltage • Guard ring protected • Small SMD package. APPLICATIONS • Ultra high-speed switching • Voltage clamping • Protection circuits • Blocking diodes. DESCRIPTION Planar Schottky barrier diodes encapsulated in a SC59 small plastic SMD package. Single diodes and double diodes with different pinning are available.

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
1PS59SB15 common anodeSBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOT-23/SC-59 marking 15 fast switch	1PS59SB15 Mark：15 Package：SOT-23/SC-59	-	Batch number：05+NOPB1K	2900 Min Order:10
1PS59SB16 common cathodeSBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOT-23/SC-59 marking 16 fast switch	1PS59SB16 Mark：16 Package：SOT-23/SC-59	-	Batch number：04NOPB 04+NOPB	18000 Min Order:10
1PS59SB20 SBD Schottky Barrier Diodes 40V 500mA/0.5A 550mV/0.55V SOT-23/SC-59 marking 20 fast switch	1PS59SB20 Mark：20 Package：SOT-23/SC-59	-	Batch number：04+ROHS	225300 Min Order:10
1PS70SB45 common anodeSBD Schottky Barrier Diodes 40V 120mA/0.12A 380mV/0.38V SOT-323/SC-70 marking 6t5 fast switch	1PS70SB45 Mark：6t5 Package：SOT-323/SC-70	-	Batch number：06+nopb 05+	4000 Min Order:10
1PS76SB10 SBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOD323/SC-76/USC/0805 marking S0 low forward voltage fast switch	1PS76SB10 Mark：S0 Package：SOD323/SC-76/USC/0805	-	Batch number：06+rohs 05+ROHS9000	39990 Min Order:10
1PS79SB31 SBD Schottky Barrier Diodes 30V 200mA/0.2A 500mV/0.5V SOD-523/SC-79/0603 marking C3 low forward voltage fast switch	1PS79SB31 Mark：C3 Package：SOD-523/SC-79/0603	-	Batch number：0646NOPB 10+ROHS	2000 Min Order:10
1PS79SB40 SBD Schottky Barrier Diodes 40V 120mA/0.12A 1V SOD-523/SC-79/0603 marking T low forward voltage fast switch	1PS79SB40 Mark：T Package：SOD-523/SC-79/0603	-	Batch number：04+	1400 Min Order:10
