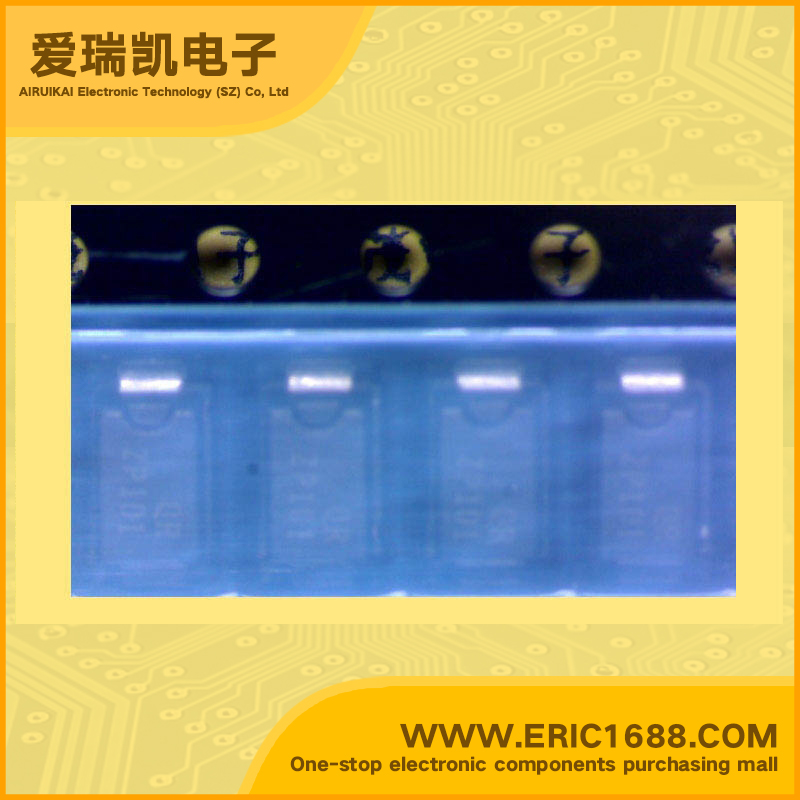

1SMA8.0AT3 TVS/ESD 8V 29.4A 1.5W DO-214AC/SMA-8V marking QR

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
8V
反向击穿电压VBR
Breakdown Voltage
9.36V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
400W
峰值脉冲电流IPPm
Peak Forward Surge Current
29.4A
额定耗散功率Pd
Power dissipation
1.5W
Description & Applications400 Watt Peak Power Zener Transient Voltage Suppressors;Specification Features • Working Peak Reverse Voltage Range − 10 V to 78 V • Standard Zener Breakdown Voltage Range − 11.7 V to 91.3 V • Peak Power − 400 Watts @ 1 ms • ESD Rating of Class 3 (> 16 kV) per Human Body Model • Response Time is Typically < 1 ns • Flat Handling Surface for Accurate Placement • Package Design for Top Slide or Bottom Circuit Board Mounting • Low Profile Package • Pb−Free Packages are Available
描述与应用400瓦峰值功率稳压 瞬态电压 抑制器;规格特性 •工作峰值反向电压范围 - 10 V至78 V •标准齐纳击穿电压范围 - 11.7 V至91.3 V •峰值电力 - 400瓦@1ms •每人体模型ESD额定值的3类(>16千伏) •响应时间通常小于1 ns •精确放置的平面处理表面 •滑动顶部或底部的电路板安装的包装设计 •薄型封装 •无铅包可用
