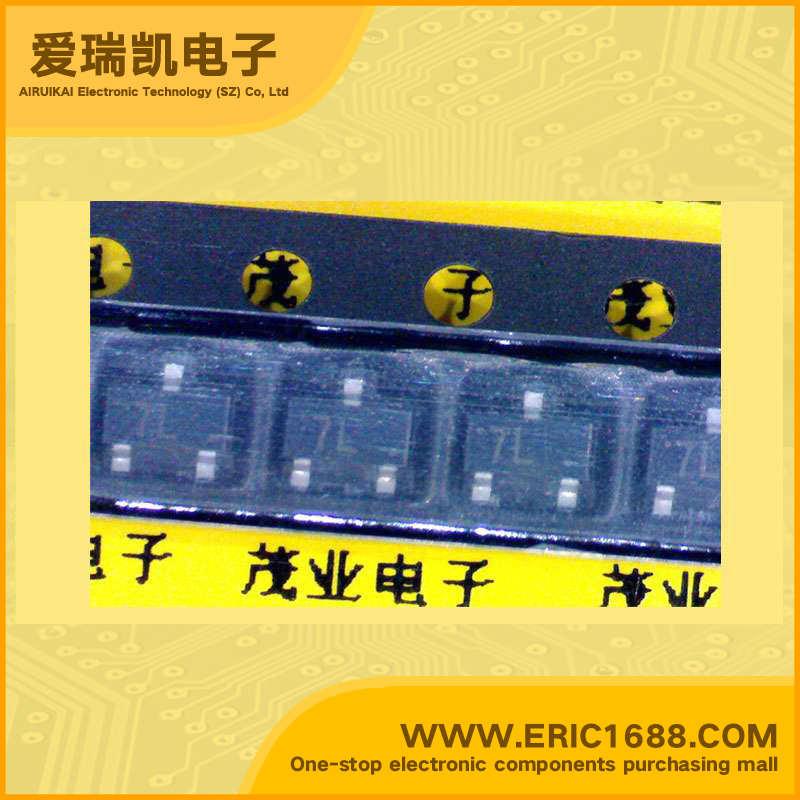

2SA2077 PNP transistors(BJT) -45V -100mA/-0.1A 80MHz 160~460 -500mV/-0.5V SOT-23/SC-59 marking 7L amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-45V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−45V
集电极连续输出电流IC
Collector Current(IC)
−100mA/-0.1A
截止频率fT
Transtion Frequency(fT)
80MHz
直流电流增益hFE
DC Current Gain(hFE)
160~460
管压降VCE(sat)
Collector-Emitter SaturationVoltage
−500mV/-0.5V
耗散功率Pc
PoWer Dissipation
200mW/0.2W
Description & ApplicationsPNP Silicon epitaxial planar type For general amplification Complementary to 2SC5845 Features • High forward current transfer ratio hFE • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.
描述与应用PNP硅外延平面型 对于一般的放大 互补型2SC5845 特点 •高正向电流传输比HFE •迷你型包装,使瘦身带包装盒包装的设备和通过自动插入。
