2SB970-S PNP transistors（BJT） -15V -500mA/-0.5A 130MHz 180~350 -160mV/-0.16V SOT-23/SC-59 marking IRS AFoutput amplifier

Model：2SB970-S

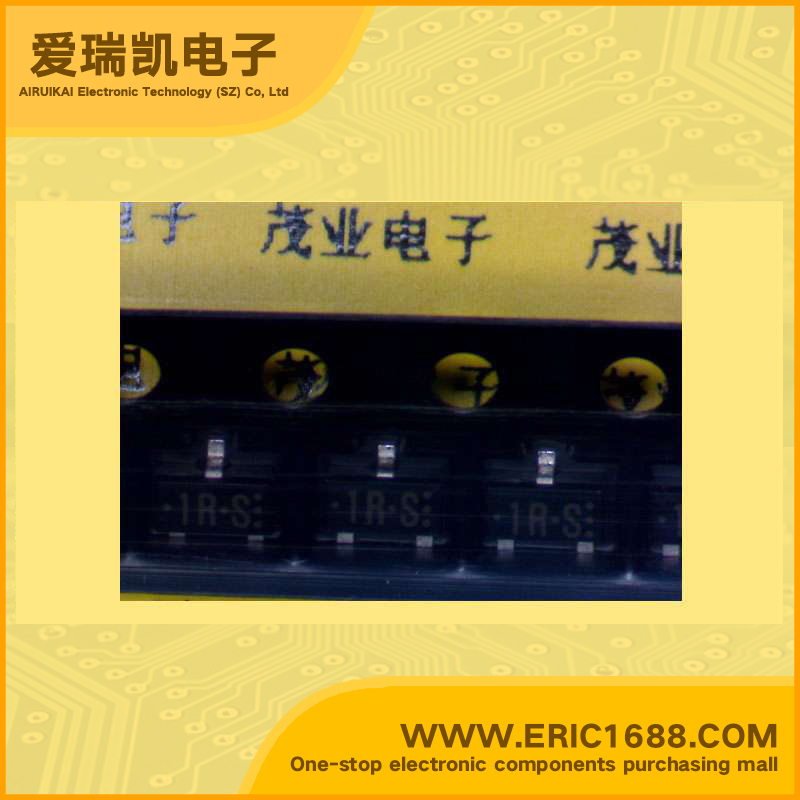

Mark / screen / code / typing：1RS
Manufacturer：
Date Code：05+ 05+rohs
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	-15V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	-10V
集电极连续输出电流IC Collector Current(IC)	−500mA/-0.5A
截止频率fT Transtion Frequency(fT)	130MHz
直流电流增益hFE DC Current Gain(hFE)	180~350
管压降VCE（sat） Collector-Emitter SaturationVoltage	-160mV/-0.16V
耗散功率Pc PoWer Dissipation	200mW/0.2W
Description & Applications	AF output amplifier； low Vce
描述与应用	AF输出放大器; 低Vce
