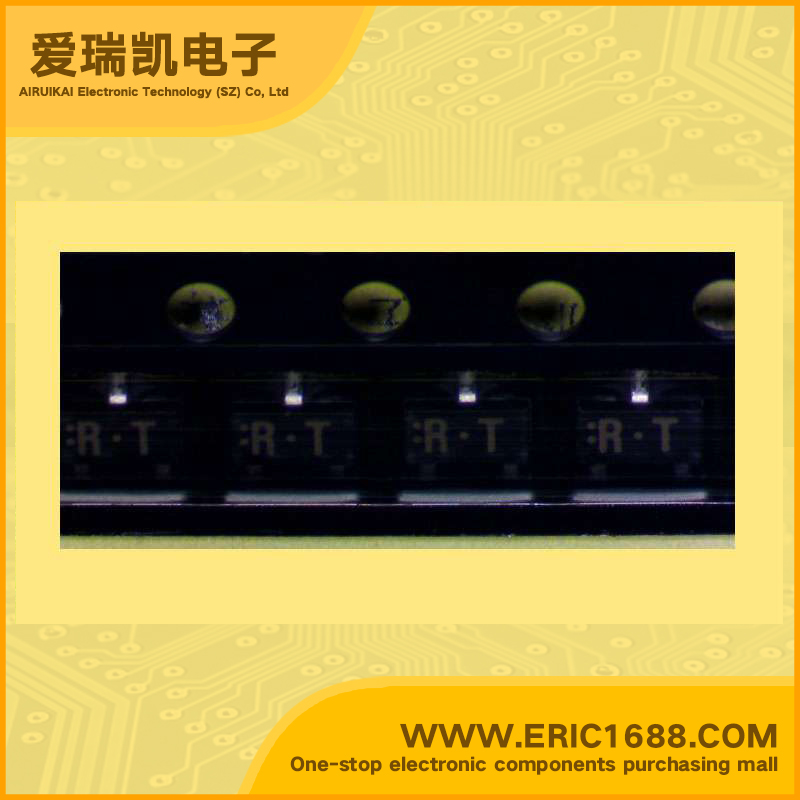

2SC2480-T NPN Transistors(BJT) 30V 50mA 800~1600MHz 800~1400 SOT-23/SC-59 marking RT high-frequency amplifier/oscillation/mixing

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
30V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
20V
集电极连续输出电流IC
Collector Current(IC)
50mA
截止频率fT
Transtion Frequency(fT)
800~1600MHz
直流电流增益hFE
DC Current Gain(hFE)
800~1400
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
150mW/0.15W
Description & ApplicationsNPN Silicon epitaxial planer type For high-frequency amplification / oscillation / mixing Features High transition frequency fT Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.
描述与应用NPN硅外延平面型 对于高频放大/振荡/混合 特点 高转换频率FT 迷你型包装,让瘦身带包装盒包装的设备和通过自动插入。
