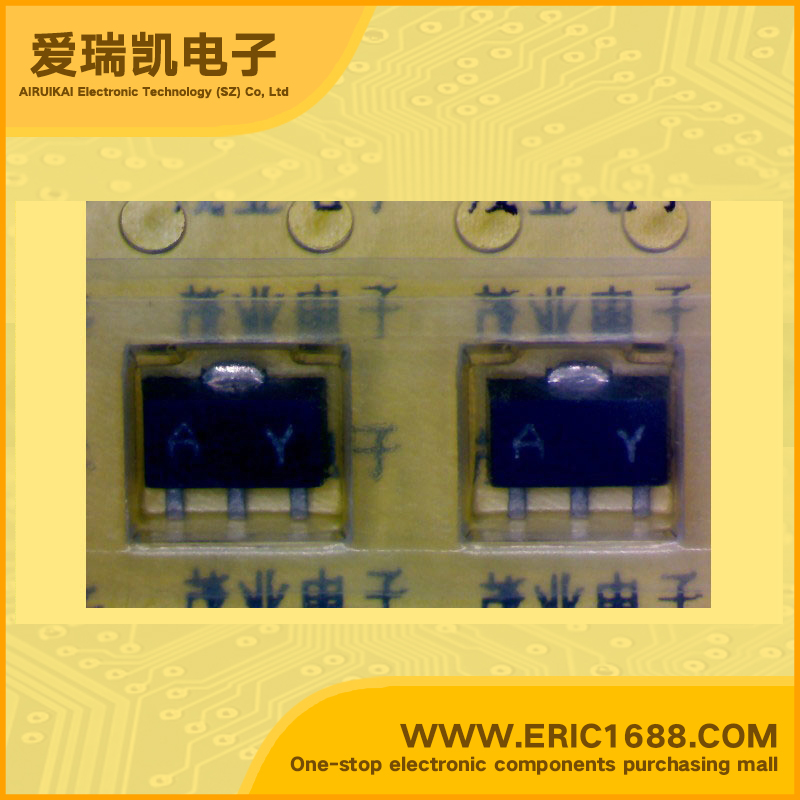

2SC2880-Y NPN Transistors(BJT) 200V 50mA 120MHz 120~240 500mV/0.5V SOT-89/PW-Mini marking AY high voltage switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 200V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 150V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 120MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | NPN Silicon epitaxial Transistors High voltage switching applications Features High voltage High transition frequency Small flat package Complementary to 2SA1200 |
| 描述与应用 | NPN硅外延晶体管 高电压开关应用 特点 高压 高转换频率 小扁平封装 互补型2SA1200 |
