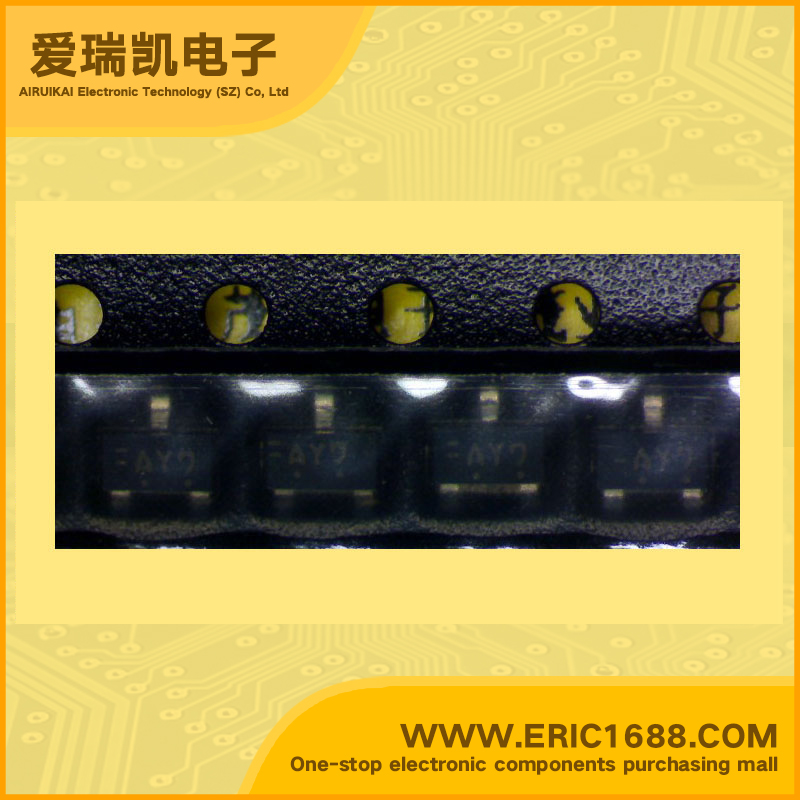

2SC3392 NPN Transistors(BJT) 60V 500mA/0.5A 300MHz 280~560 400mV/0.4V SOT-23/SC-59 marking AY7 switch circuit inverter circuit interface circuit drive circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
60V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
50V
集电极连续输出电流IC
Collector Current(IC)
500mA/0.5A
截止频率fT
Transtion Frequency(fT)
300MHz
直流电流增益hFE
DC Current Gain(hFE)
280~560
管压降VCE(sat)
Collector-Emitter Saturation Voltage
400mV/0.4V
耗散功率Pc
Power Dissipation
200mW/0.2W
Description & Applications NPN Silicon epitaxial Transistors High speed switching applications applications switching circuit, inverter circuit,interface circuit,driver circuit Features High collector breakdown voltage Large current capacity and high fT Very Small-size package Complementary to 2SA1338
描述与应用 NPN硅外延晶体管 高速开关应用 应用程序 开关电路,逆变电路,接口电路,驱动电路 特点 高集电极击穿电压 大电流容量和高FT 非常小的尺寸封装 互补型2SA1338
