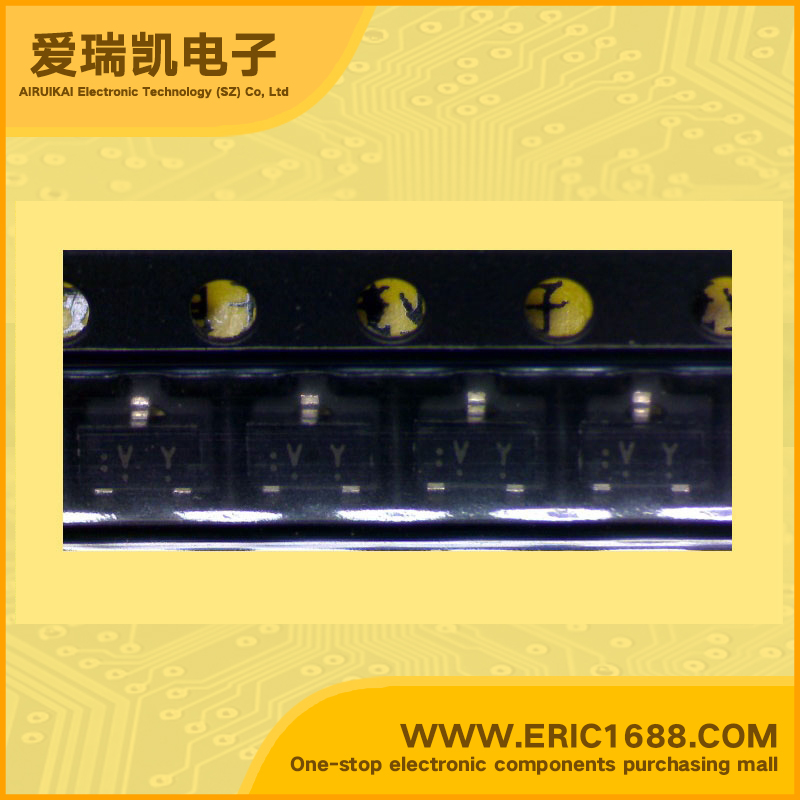

2SC3914 NPN Transistors(BJT) 50V 500mA/0.5A 200MHz 50 100mV/0.1V SOT-23/SC-59 marking VY switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
50V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
4V
集电极连续输出电流IC
Collector Current(IC)
500mA/0.5A
截止频率fT
Transtion Frequency(fT)
200MHz
直流电流增益hFE
DC Current Gain(hFE)
50
管压降VCE(sat)
Collector-Emitter Saturation Voltage
100mV/0.1V
耗散功率Pc
Power Dissipation
200mW/0.2W
Description & ApplicationsPNP/NPN Epitaxial Planar Silicon Transistors Switching Applications (With Bias Resistance) Switching Applications Swicthing circuits, inverter circuits, interface circuits,dirver circuits On-chip bias resistance : R1=10kΩ, R2=10Ω Small-sized package Large current capacity : IC=500mA
描述与应用PNP/ NPN平面外延硅晶体管 切换应用程序(偏置电阻) 开关应用 开关电路,逆变器电路,接口电路,驱动器产品电路 片上偏置电阻 R1=10Ω, R2=10Ω 大电流容量:IC=500mA
