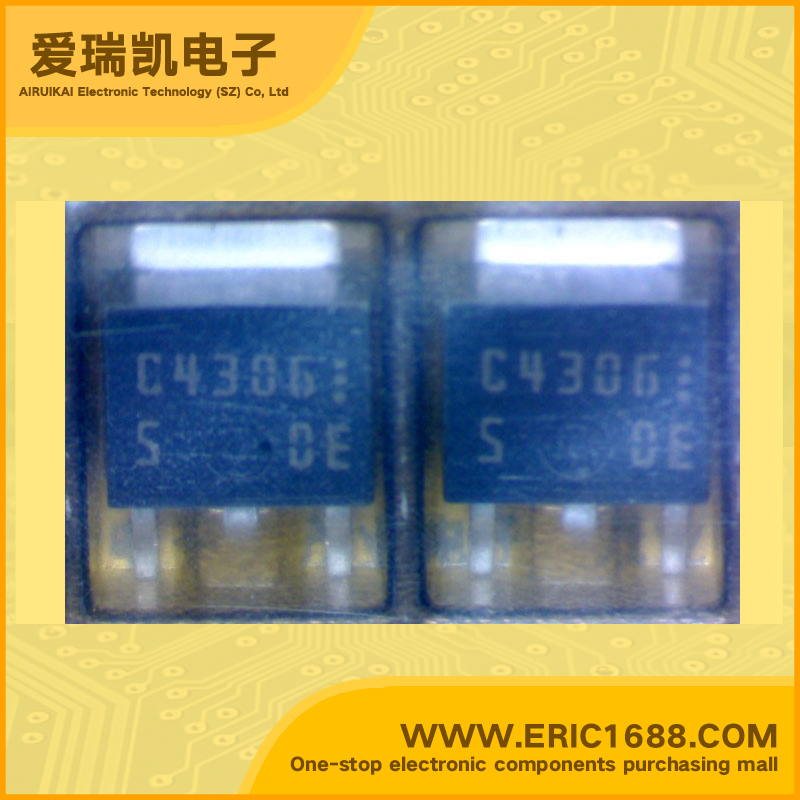

2SC4306S NPN Transistors(BJT) 30V 8A 250MHz 140~280 220mV/0.22V TO-252/DPAK marking C4306 high current switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流IC Collector Current(IC) | 8A |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 140~280 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 220mV/0.22V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | NPN epitaxial planer Silicon transistor High-Current Switching Applications Adoption of FBET,MBIT processes Low saturation voltage Fast switching speed Large current capacity Small and slim package making it easy to make 2SC4306-used set smaller |
| 描述与应用 | NPN外延刨床硅的晶体管 高电流开关应用 采纳FBET，MBIT进程 低饱和电压 开关速度快 大电流容量 小型和超薄封装，使2SC4306应用设置容易更小 |
