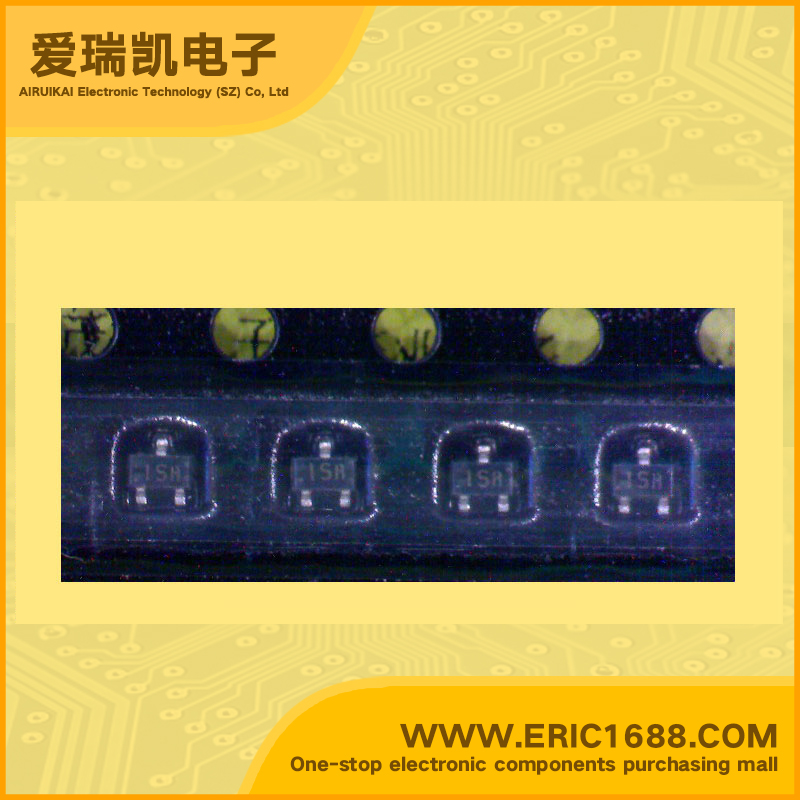

2SC4809-R NPN Transistors(BJT) 15V 50mA 1.9GHz 200~400 <500mV/0.5V SOT-523/SC-75 marking 1sr high-frequency amplifier/oscillation/mixing

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
10V
集电极连续输出电流IC
Collector Current(IC)
50mA
截止频率fT
Transtion Frequency(fT)
1.9GHz
直流电流增益hFE
DC Current Gain(hFE)
200~400
管压降VCE(sat)
Collector-Emitter Saturation Voltage
<500mV/0.5V
耗散功率Pc
Power Dissipation
125mW/0.125W
Description & ApplicationsFeatures •Silicon NPN epitaxial planar type •For high-frequency amplification/oscillation/mixing •High transition frequency fT. •Small collector output capacitance Cob and common base reverse transfer capacitance Crb •SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing
描述与应用特点 •NPN硅外延平面型 •对于高频放大/振荡/混合 •高转换频率fT。 •小集电极输出电容芯和共基极反向传输电容CRB •SS-迷你型包装,允许缩减设备通过自动插入磁带包装
