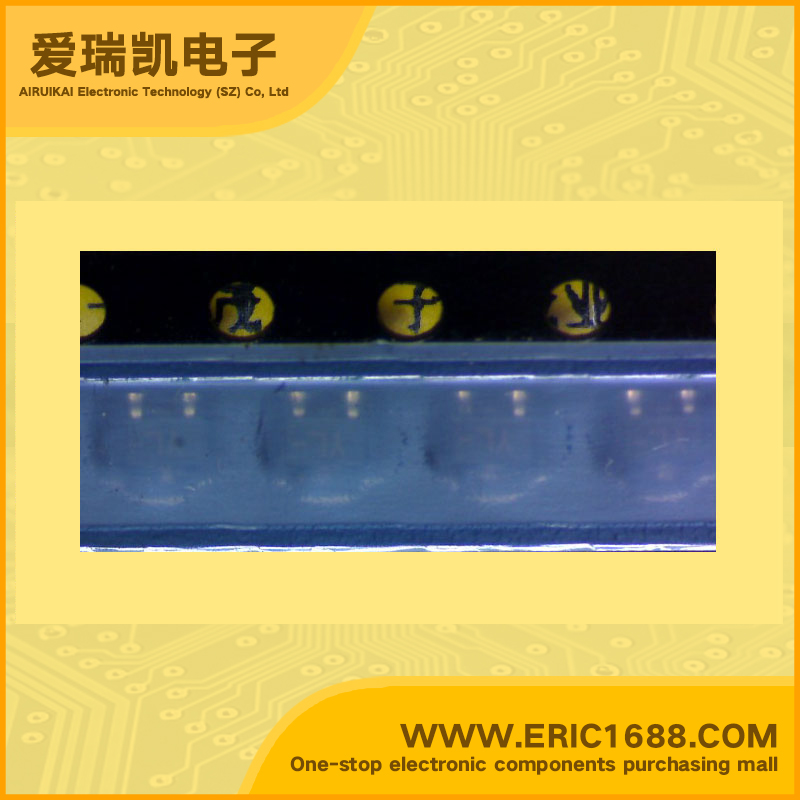

2SC4906 NPN Transistors(BJT) 20V 50mA 5.8GHz 50~250 SOT-323/SC-70/CMPAK marking YL

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
20V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
12V
集电极连续输出电流IC
Collector Current(IC)
50mA
截止频率fT
Transtion Frequency(fT)
5.8GHz
直流电流增益hFE
DC Current Gain(hFE)
50~250
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
100mW/0.1W
Description & ApplicationsFeatures •NPN Epitaxial Planar Silicon Transistor •High gain bandwidth productfT = 5.8 GHz Typ •High gain, low noise figure PG = 12.0 dB Typ, NF = 1.6 dB Typ at f = 900 MHz Application •VHF / UHF wide band amplifier
描述与应用特点 •NPN平面外延硅晶体管 •高的增益带宽productfT=5.8 GHz的典型 •高增益,低噪声系数,PG=12.0 dB(典型值),NF= 1.6 dB(典型值)在f=900兆赫 应用 •VHF / UHF宽频带放大器
