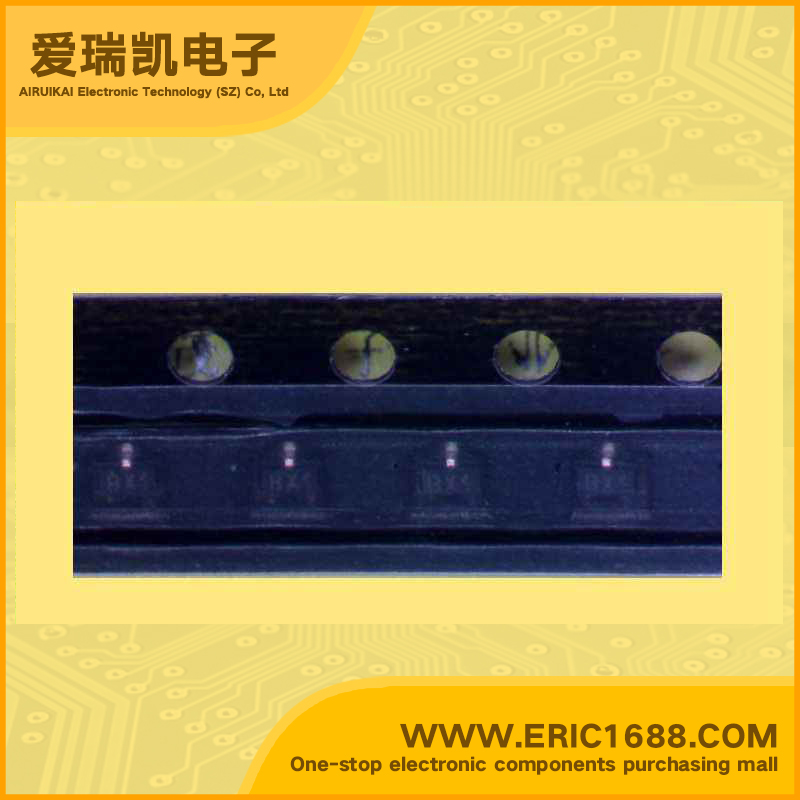

2SC5585H NPN Transistors(BJT) 15V 500mA/0.5A 320MHz 270~680 90mV SOT-523/SC75A/EMT3 marking BX low frequency

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
12V
集电极连续输出电流IC
Collector Current(IC)
500mA/0.5A
截止频率fT
Transtion Frequency(fT)
320MHz
直流电流增益hFE
DC Current Gain(hFE)
270~680
管压降VCE(sat)
Collector-Emitter Saturation Voltage
90mV
耗散功率Pc
Power Dissipation
150mW/0.15W
Description & ApplicationsLow Frequency Transistor The transistor of 500mA class which went only into 2125 size conventionally was attained in 1608 sizes. Features 1) High current. 2) Low VCE(sat). VCE(sat) ≤ 250mV at IC=200mA/IB=10mA 3) Flat lead Structure switching muting
描述与应用低频晶体管 晶体管为500mA类只进了2125尺寸达到传统1608尺寸。 特点 1)高电流。 2)低VCE(sat)的。 VCE(sat)的≤250mV的 在IC=200mA/IB大于10mA 3)扁平引脚 结构  交换  静音
