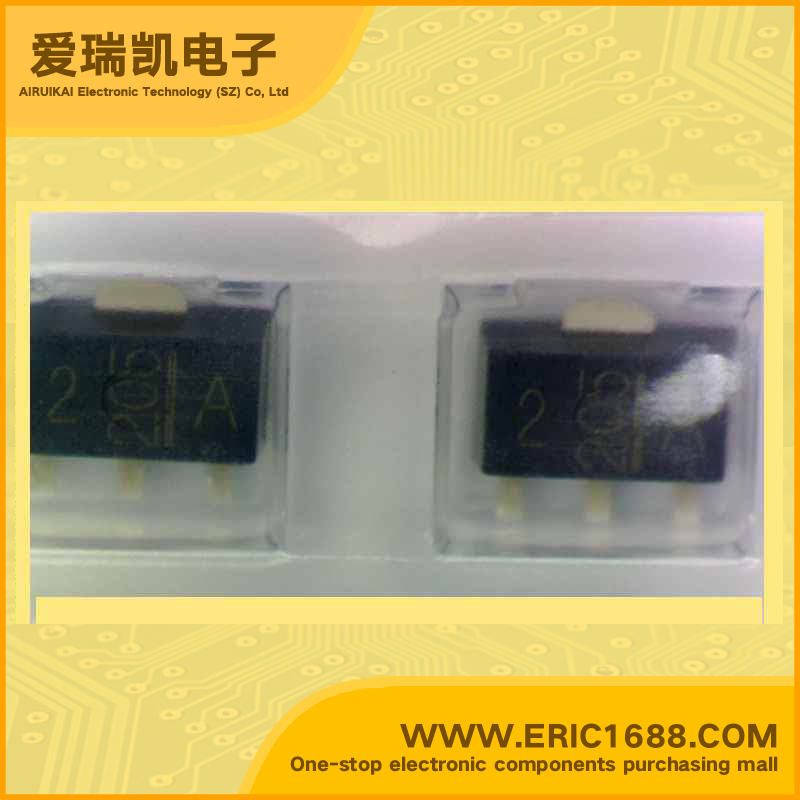

2SC5712 NPN Transistors(BJT) 100V 3A 400~1000 <140mV/0.14V SOT-89/PW-Mini marking 2A high current switch DC-DCswitch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
100V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
50V
集电极连续输出电流IC
Collector Current(IC)
3A
截止频率fT
Transtion Frequency(fT)
直流电流增益hFE
DC Current Gain(hFE)
400~1000
管压降VCE(sat)
Collector-Emitter Saturation Voltage
<140mV/0.14V
耗散功率Pc
Power Dissipation
1W
Description & ApplicationsHigh-Speed Switching Applications DC-DC Converter Applications DC-AC Converter Applications • High DC current gain: hFE = 400 to 1000 (IC = 0.3 A) • Low collector-emitter saturation voltage: VCE (sat) = 0.14 V (max) • High-speed switching: tf = 120 ns (typ.)
描述与应用高速开关应用 DC-DC转换器应用 DC-AC转换器应用 •高直流电流增益:HFE=400〜1000(IC=0.3 A) •低集电极 - 发射极饱和电压VCE(饱和)= 0.14 V(最大值) •高速开关:TF =120 ns
