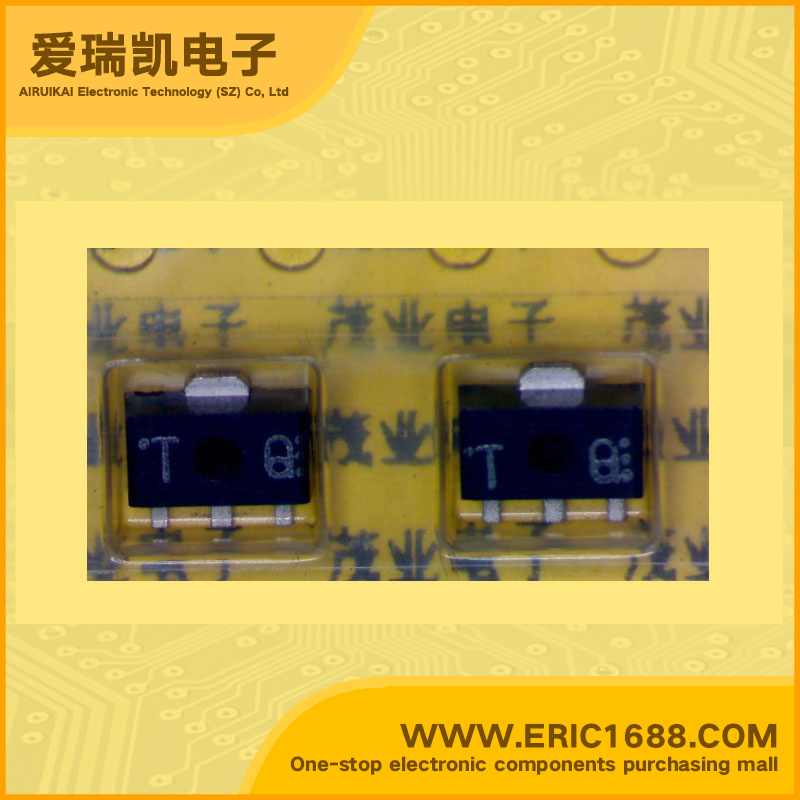

2SD1119-q NPN Transistors(BJT) 40V 3A 150MHz 230~380 1V SOT-89/SC-62 marking TQ low frequency power amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流IC Collector Current(IC) | 3A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 230~380 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 1V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | Silicon NPN epitaxial planer type low-frequency power amplification Features * Low collector to emitter saturation voltage VCE(sat) * Satisfactory operation performances at high efficiency with the low-voltage power supply. * Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 低频功率放大 特点 *低集电极到发射极饱和电压VCE（SAT） *高效率令人满意的操作性能 低电压电源。 *迷你型包装，使瘦身的设备和 通过自动插入磁带包装和杂志 填料 |
