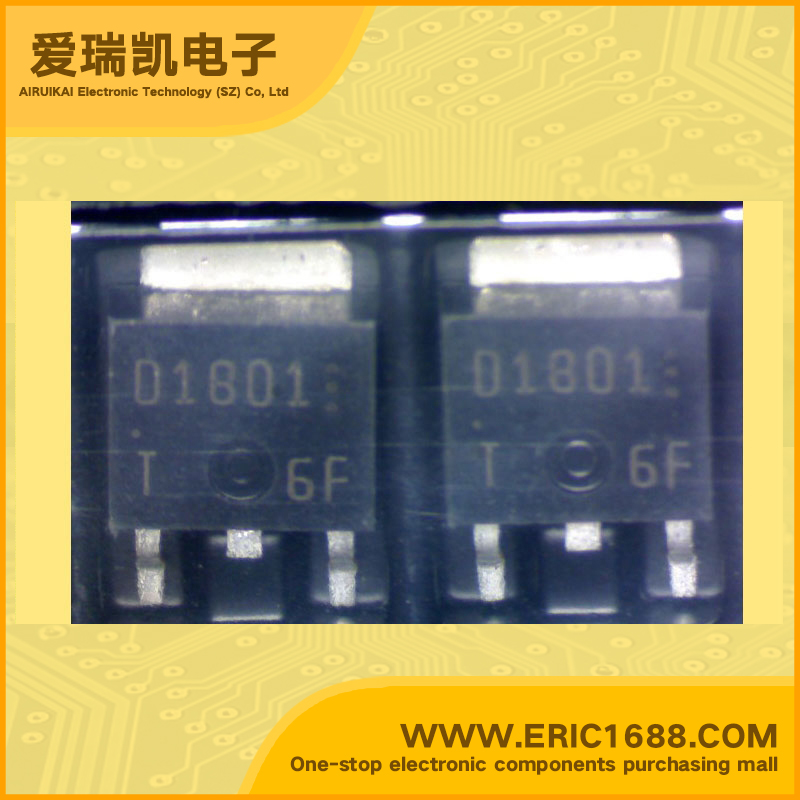

2SD1801T NPN Transistors(BJT) 60V 2A 150MHz 200~400 150mV/0.15V TO-252/DPAK marking D1801 high current switch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
60V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
50V
集电极连续输出电流IC
Collector Current(IC)
2A
截止频率fT
Transtion Frequency(fT)
150MHz
直流电流增益hFE
DC Current Gain(hFE)
200~400
管压降VCE(sat)
Collector-Emitter Saturation Voltage
150mV/0.15V
耗散功率Pc
Power Dissipation
800mW/0.8W
Description & ApplicationsPNP/NPN Epitaxial Planar Silicon Transistor High Current Switching Applications Applications · strobes ,relay drivers, voltage drivers,lamp drivers Features * large current capacity and wide ASO * Low collector to emitter saturation voltage VCE(sat) * fast switch speed * adoption of FBET,MBIT processes
描述与应用PNP/ NPN平面外延硅晶体管 高电流开关应用 应用  ·闪光灯,继电器驱动电压驱动器,灯驱动器 特点 *大电流容量,广ASO *低集电极到发射极饱和电压VCE(SAT) *开关速度快 *采用的FBET,MBIT进程
