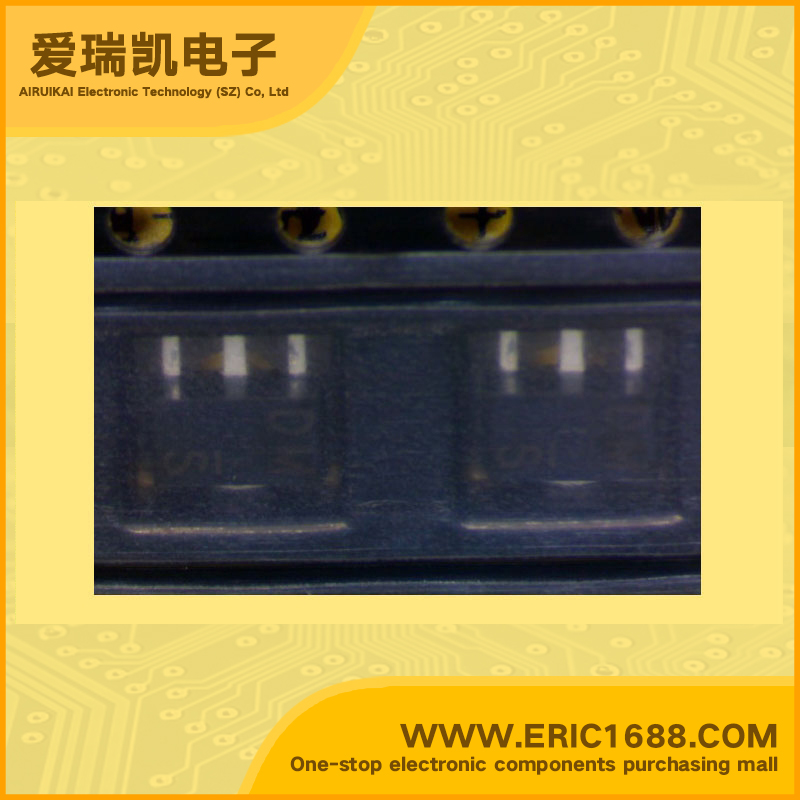

2SD2170 Darlington NPN Vcbo=90V Vces=90v Ic=2A HEF=1000~10000 代码/MARKING DM

Hot selling goods

Product description
Collector-Emitter Voltage(VCEO)  90V
Collector Current(IC)  2A
Transtion Frequency(fT)  80MHZ
DC Current Gain(hFE)  1000~10000

Vce(sat)

Collector-Emitter Saturation Voltage

 1.5V
Power Dissipation (Pc)  2w
Description & Applications  Medium Power Transistor (Motor, Relay drive) (90V , 2A).
Features
1) Built-in zener diode between collector and base.
2) Zener diode has low dispersion.
3) Strong protection against reverse power surges due to
"L" loads.
4) Darlington connection for high DC current gain.
5) Built-in resistor between base and emitter.
6) Built-in damper diode.
