2SD2345 NPN Transistors(BJT) 50V 50mA 120MHz 1000~2000 50mV SOT-523/SC-75 marking 1ZT low-frequency amplifier

Model：2SD2345

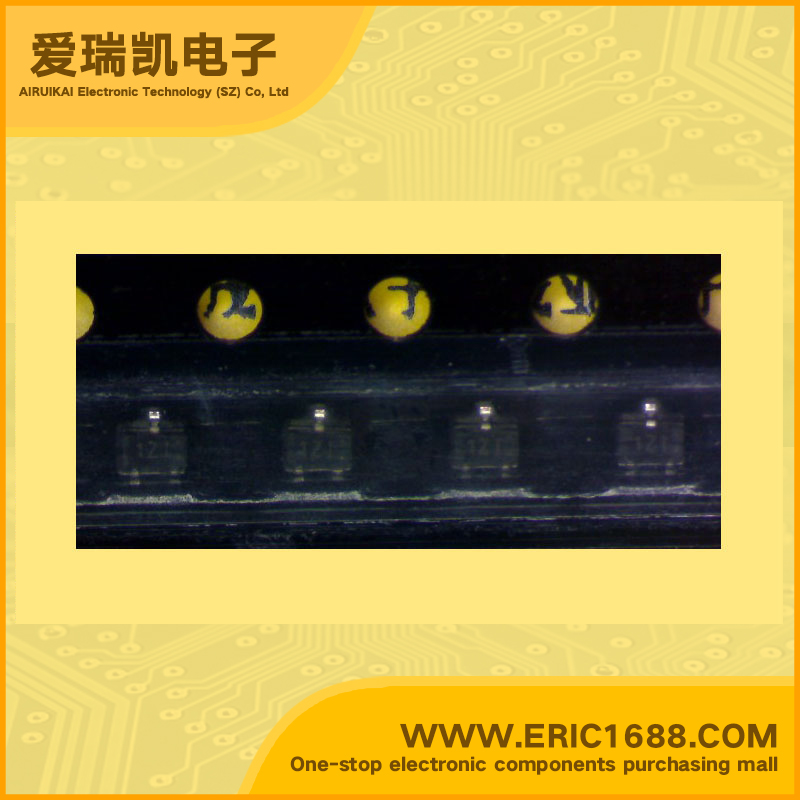

Mark / screen / code / typing：1ZT
Manufacturer：
Date Code：05+
Package：SOT-523/SC-75
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	40V
集电极连续输出电流IC Collector Current(IC)	50mA
截止频率fT Transtion Frequency(fT)	120MHz
直流电流增益hFE DC Current Gain(hFE)	1000~2000
管压降VCE（sat） Collector-Emitter Saturation Voltage	50mV
耗散功率Pc Power Dissipation	125mW/0.125W
Description & Applications	Silicon NPN epitaxial planar type For low-frequency amplification Features High foward current transfer ratio hFE. Low collector to emitter saturation voltage VCE(sat) High emitter to base voltage VEBO. Low noise voltage NV
描述与应用	NPN硅外延平面型对于低频放大特点高正向电流传输比HFE。低集电极到发射极饱和电压VCE（SAT）高发射器基极电压VEBO。低噪声电压NV

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
2SD2351 NPN Transistors(BJT) 60V 150mA/0.15A 250MHz 1200~2700 300mV/0.3V SOT-323/SC-70/UMT3 marking BJW	2SD2351 T106W Mark：BJW Package：SOT-323/SC-70/UMT3	-	Batch number：10+ROHS 05NOPB	0 Min Order:10
2SD2351 NPN Transistors(BJT)Vcbo= 60V Vceo=50v Ic=150mA/0.15A ft=250MHz HFE=820~1800 Vce=300mV/0.3V SOT-323/SC-70/UMT3 marking BJV	2SD2351 T106V Mark：BJV Package：SOT-323/SC-70/UMT3	-	Batch number：05+ 05+	2085 Min Order:10
2SD2391 NPN Transistors(BJT) 60V 2A 210MHz 120~270 130mV/0.13V SOT-89/SC-62/MPT3 marking DTQ	2SD2391 T100Q Mark：DTQ Package：SOT-89/SC-62/MPT3	-	Batch number：09nopb 05+	100 Min Order:10
2SD2402 NPN Transistors(BJT) Vcbo=50V Vceo=30v Ic= 5A ft=170MHz hfe=160~320 Vce=140mV/0.14V SOT-89 marking EY low frequency power amplifier medium speed switch	2SD2402 Mark：EY Package：SOT-89	-	Batch number：06+rohs 05+NOPB600	1100 Min Order:10
2SD2402 NPN Transistors(BJT) Vcbo=50V Vceo=30V Ic= 5A ft=170MHz HFE=200~400 Vce=140mV/0.14V SOT-89 marking EZ low frequency power amplifier medium speed switch	2SD2402 Mark：EZ Package：SOT-89	-	Batch number：05+	2900 Min Order:10
2SD2403 NPN Transistors(BJT) Vcbo= 80V Vceo=60V Ic= 3A ft=130MHz hfe=160~320 Vce=150mV/0.15V SOT-89 marking GY low frequency power amplifier medium speed switch	2SD2403 Mark：GY Package：SOT-89	-	Batch number：05+ 05+	310 Min Order:10
2SD2403 NPN Transistors(BJT) Vcbo= 80V Vceo=60V Ic= 3A ft=130MHz hfe=200~400 Vce=150mV/0.15V SOT-89 marking GZ low frequency power amplifier medium speed switch	2SD2403 Mark：GZ Package：SOT-89	-	Batch number：05+ 05NOPB3KM+950	12450 Min Order:10
