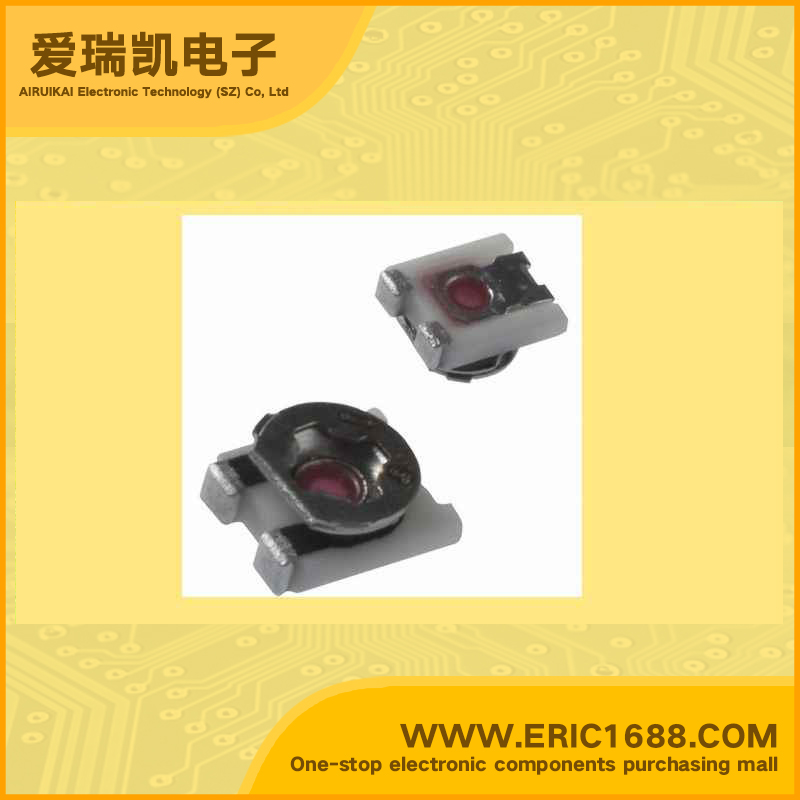

Trimmer Potentiometer 3302X-3-103E 10KΩ/Ohm 2X2-10K marking 14

Model：3302X-3-103E
Mark / screen / code / typing：14
Manufacturer：
Date Code：05+
Package：2X2-10K
Standard Package：3000
Min Order：10

Hot selling goods

Product description

电阻值 Resistance	10KΩ/Ohm
额定功率 Power	0.15W
容差 Tolerance	±25%
温度系数 Temperature Coefficient	±250ppm/°C
圈数 Number of Turns	单圈 Single
调节类型 Adjustment Type
端子类型 Termination Style
Description & Applications	■ Single-Turn Cermet / Open Frame ■ Recommended for reflow processing ■ Rotor design compatible with automatic adjustment equipment ■ 2 mm size meets EIA/EIAJ standard trimmer footprint ■ 3302 - 2 mm SMD Trimming Potentiometer
描述与应用	■单圈金属陶瓷/开放式框架 ■推荐回流处理 ■转子设计与自动调整设备兼容 ■2毫米大小符合EIA/ EIAJ标准微调足迹 ■3302 - 2毫米贴片微调电位器
