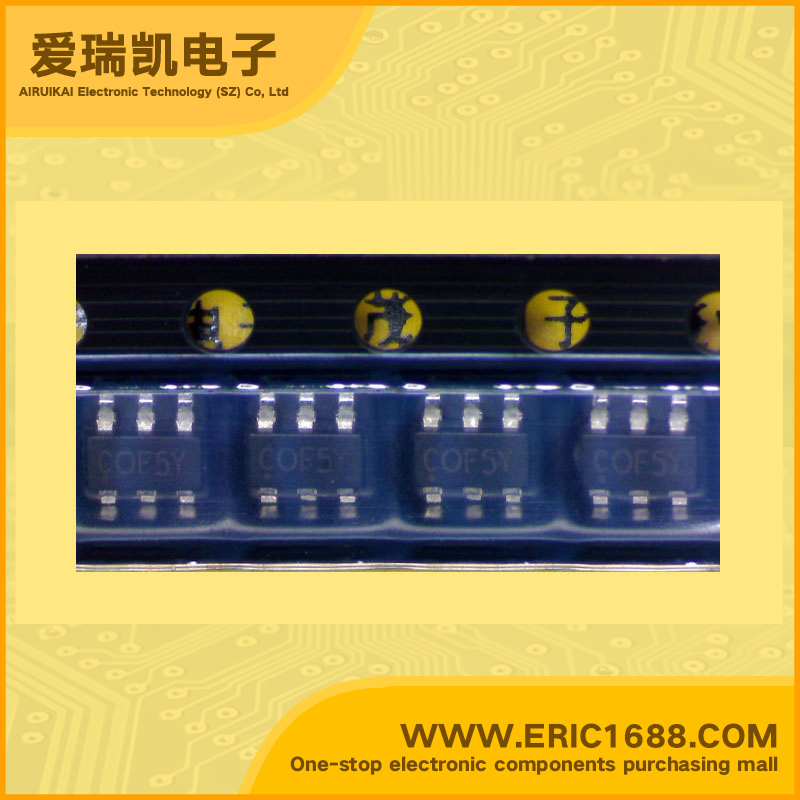

AAT4280IGU-1 Power Distribution Switch SOT-163/SOT23-6 marking CO Slew Rate Controlled Load Switch

Hot selling goods

Product description
类型
Type
高端开关 high-side
输出数
Number of Outputs
1
Rds (On)100mΩ@3V
内部开关
Internal Switch(s)
有 YES
电流限制
Current Limit
2.3A
电压 - 输入
Voltage - Input
1.5V~5.5V
Description & Applications•Slew Rate Controlled Load Switch •1.5V to 5.5V Input Voltage Range • Very Low RDS(ON), Typically 80mΩ (5V) • Slew Rate Limited Turn-On Time Options ▪ 4.5ms ▪ 1ms ▪ 0.5μs ▪ 100μs • Fast Shutdown Load Discharge Option • Low Quiescent Current ▪ 25nA (typ) • TTL/CMOS Input Logic Level • Temperature Range: -40ºC to +85°C • 3kV ESD Rating • Cellular Telephones • Digital Still Cameras • Hot Swap Supplies • LCD Panels • Notebook Computers • Personal Communication Devices • Personal Digital Assistants (PDAs)
描述与应用•摆率控制的负荷开关 •1.5V至5.5V输入电压范围 •非常低的RDS(ON),通常为80MΩ(5V) •转换速率限制开启时间选项 ▪4.5ms ▪1毫秒 ▪0.5μs ▪100μS •快速关断负载放电选项 •低静态电流 ▪25nA(典型值) •TTL/ CMOS输入逻辑电平 •温度范围:-40ºC至+85°C •3KV ESD额定值 •蜂窝电话 •数码相机 •热插拔用品 •LCD面板 •笔记本电脑 •个人通信设备 个人数字助理(PDA)
