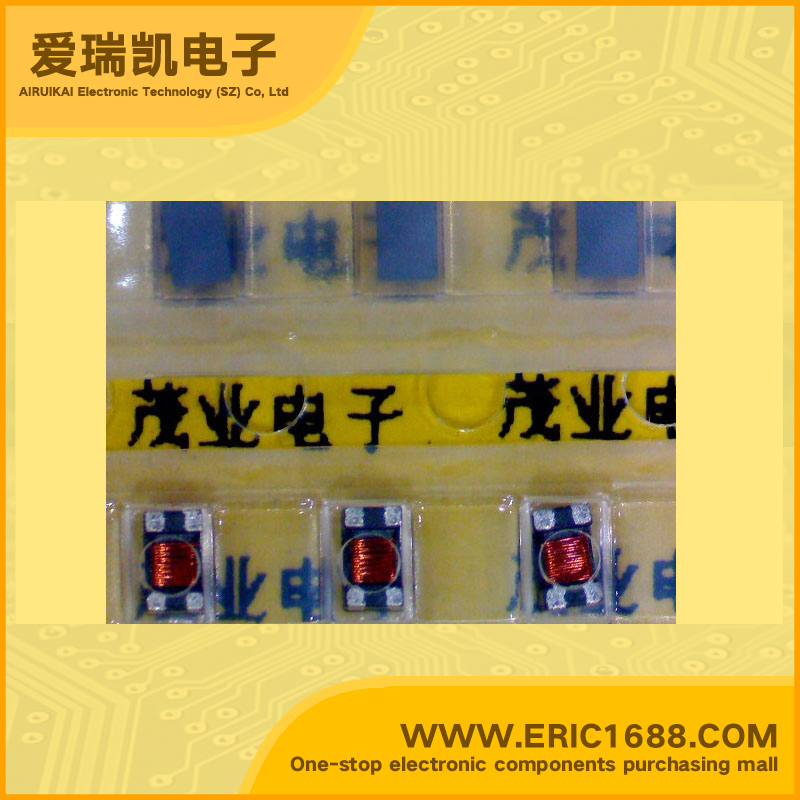

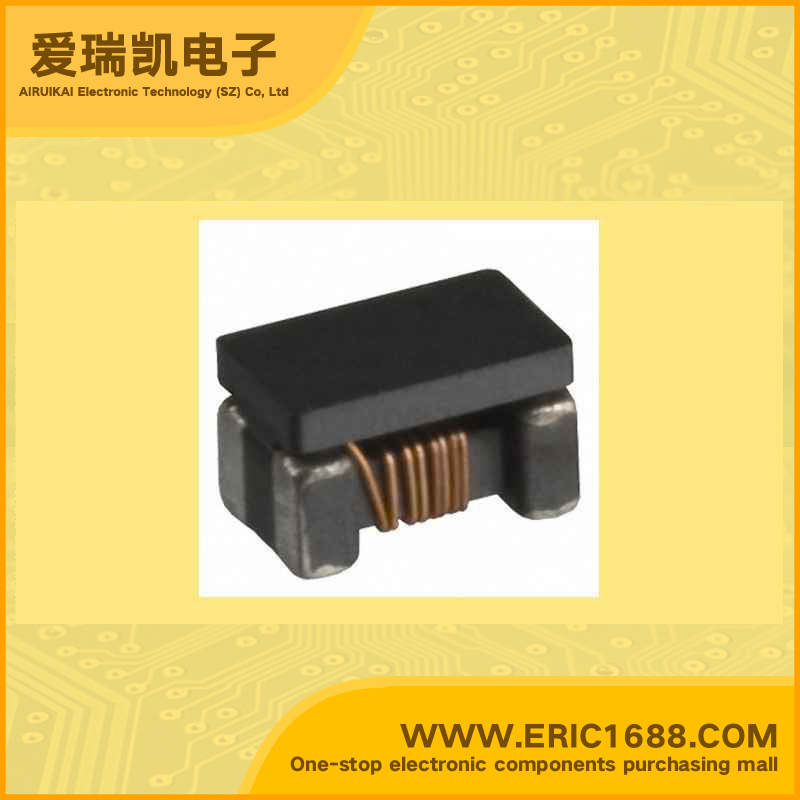

ACM2012D-900-2P-T00 Common Mode Choke 0805-900

Hot selling goods

Product description
线路数
Number of Lines
2
电感值
Inductance
电流
Current
300mA
电阻DCR
DC Resistance (DCR)
0.3R
阻抗
Impedance
90R
Description & ApplicationsFEATURES • These are a series of broadband common mode filters developed for high-speed differential signal interfaces, such as DVI and HDMI™. • The cutoff frequencies in differential mode for ACM2012D and ACM2012H are 3.5GHz and 6.0GHz respectively, so they do not interfere with high-speed differential signals. • The characteristic impedance is approximated to 100Ω, conforming to the TDR standard for HDMI™. APPLICATIONS • For new HDMI™ interfaces used in digital video devices: ACM2012H is suited for use on the transmission side (Source) of digital TVs, DVD recorders and liquid crystal projectors. ACM2012D is suited for use on the receiving side (Sink). • For digital video signal interfaces DVI (UXGA) used in PCs and other devices/High-speed differential signal interfaces for USB 2.0, IEEE1394 and Serial-ATA.
描述与应用特点 这些一系列的宽带共模滤波器的开发用于高速差分信号接口,如DVI 和HDMI™。 的截止频率在差分模式下为ACM2012D和 ACM2012H分别为3.5GHz和6.0GHz,所以他们不这样做 高速差分信号的干扰。 •近似的特性阻抗为100Ω,符合HDMI™TDR标准。 应用 •新的HDMI™接口,用于数字视频设备: ACM2012H适合用于在发送侧(源) 数字电视,DVD录像机和液晶投影机。 ACM2012D适合使用在接收端(汇)。 •对于数字视频信号接口DVI(UXGA)用于PC 其他设备/高速差分信号接口为USB 2.0,IEEE1394,串行ATA。
