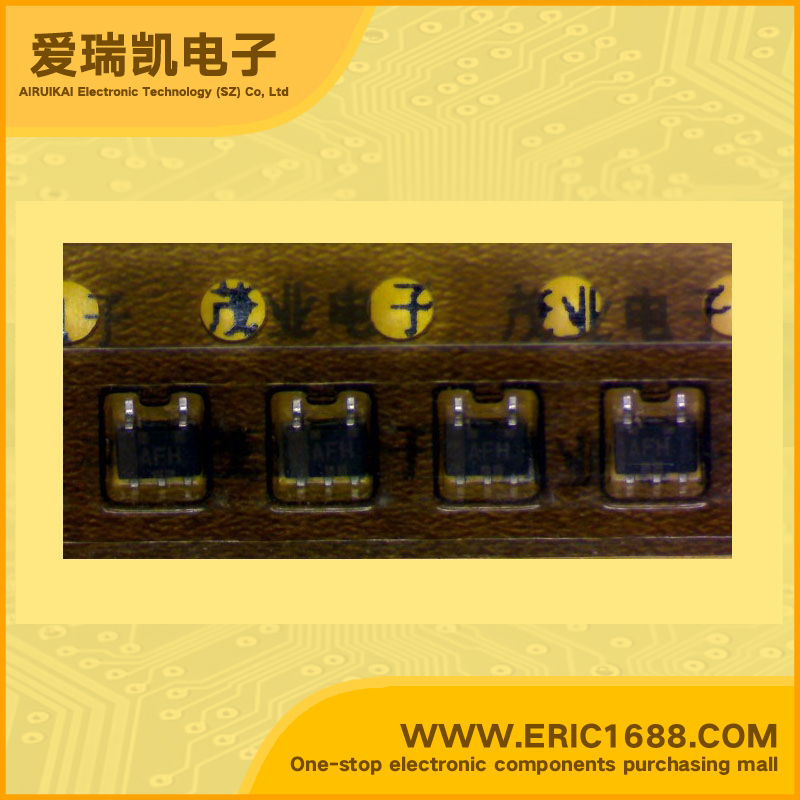

Integrated Circuit（IC） Inverting Schmitt trigger AHC1G14HDCKR SOT-353/SC70-5/SC-88A marking AFH
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.3V~1.1V |
| 高逻辑电平 Logic Level - High | 1.7V~4.4V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.1ns @ 3.0V，15pF |
| Description & Applications | single schmitt-trigger inverter gate;Features Operating range 2V to 5.5V Vcc Switching speed typ3.1ns(@Vcc=3.0V,CL=15pF) All inputs Vih(max)=5.5V(@Vcc=0 to 5.5V) 5 pin DBV package 5 pin DCK package |
| 描述与应用 | 单施密特触发器逆变器门;特性 工作范围2V至5.5V的VCC 开关的速度typ3.1ns（VCC= 3.0V，CL=15pF的） 所有输入VIH（最大）= 5.5V（VCC =0〜5.5V） 5引脚DBV封装 5引脚DCK封装 |
