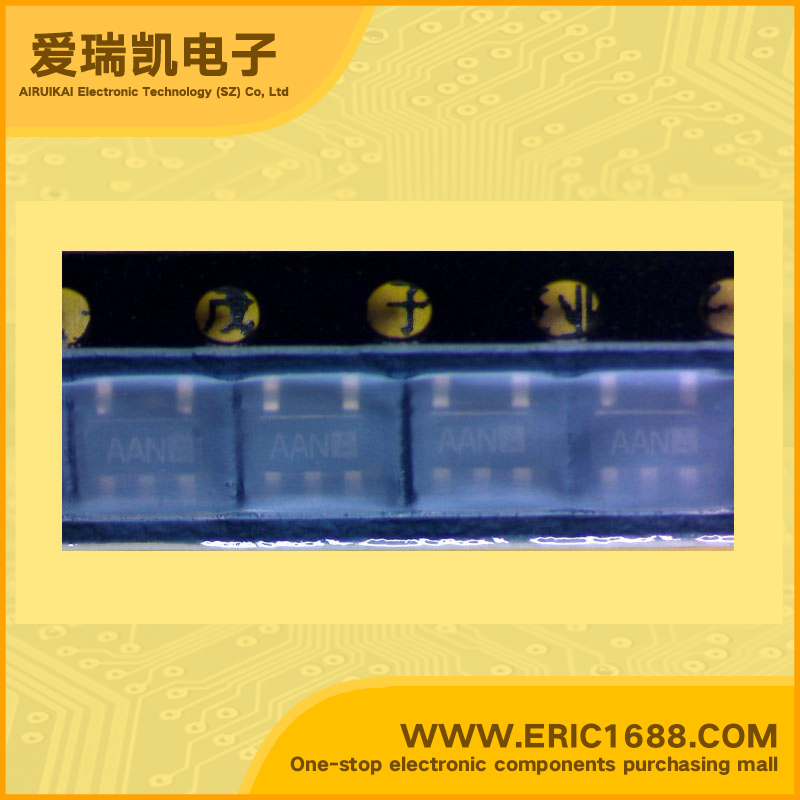

AME8802DEEV LDO Voltage Regulator 2.5V 400mV/0.4V With Enable Pin SOT-23 marking AAN Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 8V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 300mA CMOS LDO ;•Very Low Dropout Voltage •Guaranteed 300mA Output •Accurate to within 1.5% •30µA Quiescent Current •Over-Temperature Shutdown •Current Limiting •Short Circuit Current Fold-back •Power Good Output Function •Power-Saving Shutdown Mode •Space-Saving SOT-25 (SOT-23-5) •Factory Pre-set Output Voltages •Low Temperature Coefficient |
| 描述与应用 | 300mA的CMOS LDO;•非常低压差电压 •保证300mA输出 •精确度在1.5％以内 •30μA静态电流 •过温关断 •电流限制 •短路电流折返 •电源良好输出功能 •省电关断模式 •节省空间的SOT-25封装（SOT-23-5） •工厂Pre-set输出电压 •低温度系数 |
