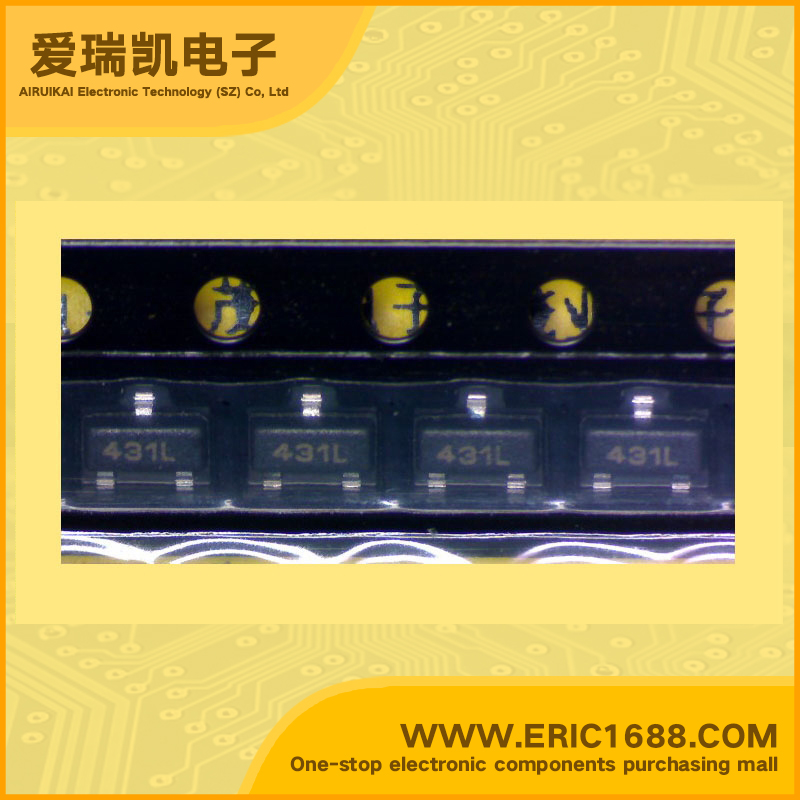

AMS431LBM Voltage Reference Power Management IC 1.24V~20V SOT-23 marking 431L Battery-Powered System Power Switching Supplies

Hot selling goods

Product description
参考类型
Reference Type
输出电压Vo
Voltage - Output
1.24V~20V
误差
Tolerance
±0.5%
温度系数
Temperature Coefficient
60ppm/°C
输入电压
Voltage - Input
1.24V~20V
阴极电流
Current - Cathode
80uA
输出电流IOUT
Current - Output
100mA/0.1A
Description & ApplicationsFEATURES • Trimmed 0.5% Tolerance • Wide Operating Current Range 60µA to 100mA • Low Reference Input Current 0.4µA • Low Dynamic Output Impedance • Low Output Noise • Nominal Temperature Range to 85°C • Temperature-Compensated: 60ppm/°C APPLICATIONS • Battery Powered Systems • Switching Power Supplies • Adjustable Power Supplies • Telecommunications • Error Amplifiers • Notebook/Personal Computer • Monitors/ VCR/ TV • Pagers
描述与应用特点 •边0.5%公差 •宽工作电流范围60μA至100mA •低参考输入电流0.4μA •动态输出低阻抗 •低输出噪声 •额定温度范围为85°C •温度补偿:为60ppm/°C 应用 •电池供电系统 •开关电源 •可调电源 •电信 •误差放大器 •笔记本电脑/个人电脑 •监视器/ VCR/ TV •寻呼机
