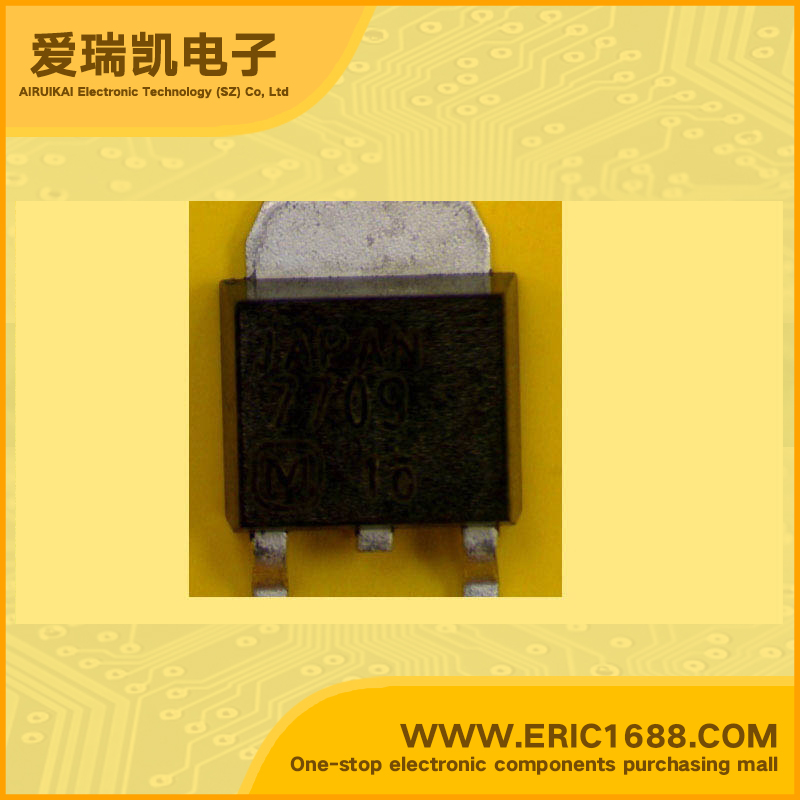

AN7709SP-E1 LDO Voltage Regulator 8V 500mV/0.5V TO-252 marking 7709 Short-Circuit Protection Over-Temperature Protection

Model：AN7709SP-E1
Mark / screen / code / typing：7709
Manufacturer：
Date Code：05+
Package：TO-252
Standard Package：3000
Min Order：10

Hot selling goods

Product description

电路数量 Number of Regulators	1
输入电压VIN Voltage - Input	30V
输出电压VOUT Voltage - Output	8V
输出电流Io Current - Output	1A
最大压降VDO Voltage - Dropout	500mV/0.5V
带使能脚EN/CE(ON/OFF功能) With Enable Pin	无 No
最大耗散功率Pd Power dissipation
Description & Applications	Low-dropout three-pin voltage regulator 1.2-A type ;• Minimum I/O voltage difference: 0.5 V (typ.) • On-chip overcurrent limiter • On-chip thermal protection circuit • Power supply equipment
描述与应用	低压差三针电压调节器1.2-A型;•最小的I / O电压差：0.5 V（典型值） •片上过电流限制器 •片上热保护电路 •电源设备
