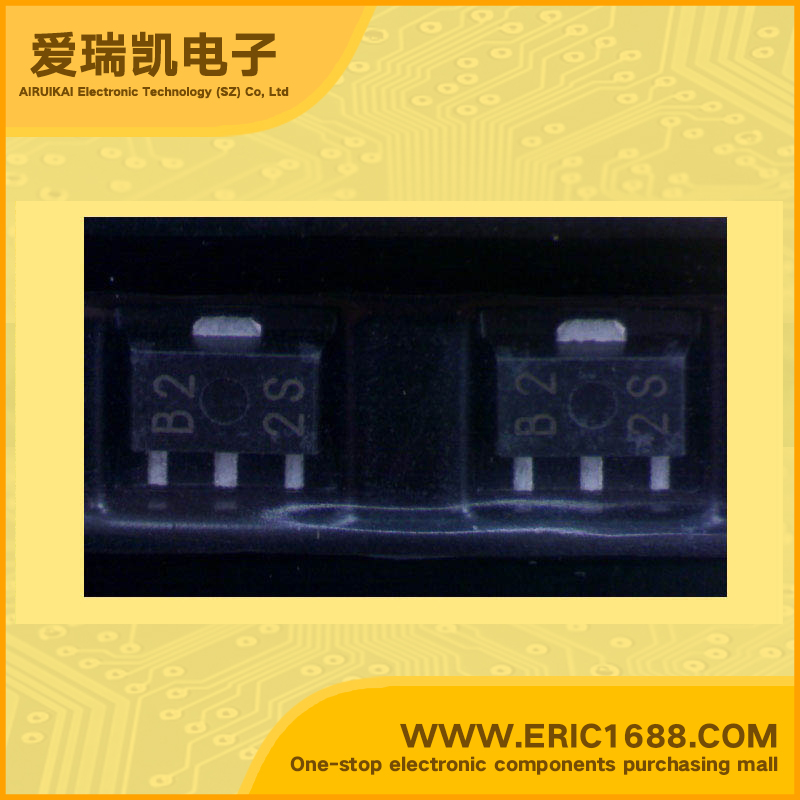

AP432AYA Voltage Reference Power Management IC 1.24V~20V SOT-89 marking B2 Fast Turn-on Response Low Output Noise

Hot selling goods

Product description
参考类型
Reference Type
输出电压Vo
Voltage - Output
1.24V~20V
误差
Tolerance
±0.5%
温度系数
Temperature Coefficient
30ppm/°C
输入电压
Voltage - Input
1.24V~20V
阴极电流
Current - Cathode
150uA
输出电流IOUT
Current - Output
200mA/0.2A
Description & ApplicationsFEATURES - Precision reference voltage AP432 : 1.24V ± 1% AP432A : 1.24V ± 0.5% - Sink current capability: 200mA. - Minimum cathode current for regulation: 150µA - Equivalent full-range temp coefficient: 30 ppm/oC - Fast turn-on Response. - Low dynamic output impedance: 0.2Ω - Programmable output voltage to 20v - Low output noise - Packages: SOT89, SOT23, SOT25, SOP8 and TO92
描述与应用特点 - 精密参考电压  AP432:1.24V±1%  AP432A:1.24V±0.5% - 灌电流能力时:200mA。 - 最小阴极电流调节:150μA - 等效满量程温度系数:30 PPM/℃ - 快速导通响应。 - 低动态输出阻抗:0.2Ω - 可编程的输出电压为20V - 低输出噪声 - 封装:SOT89,SOT23,SOT25,SOP8和TO92
