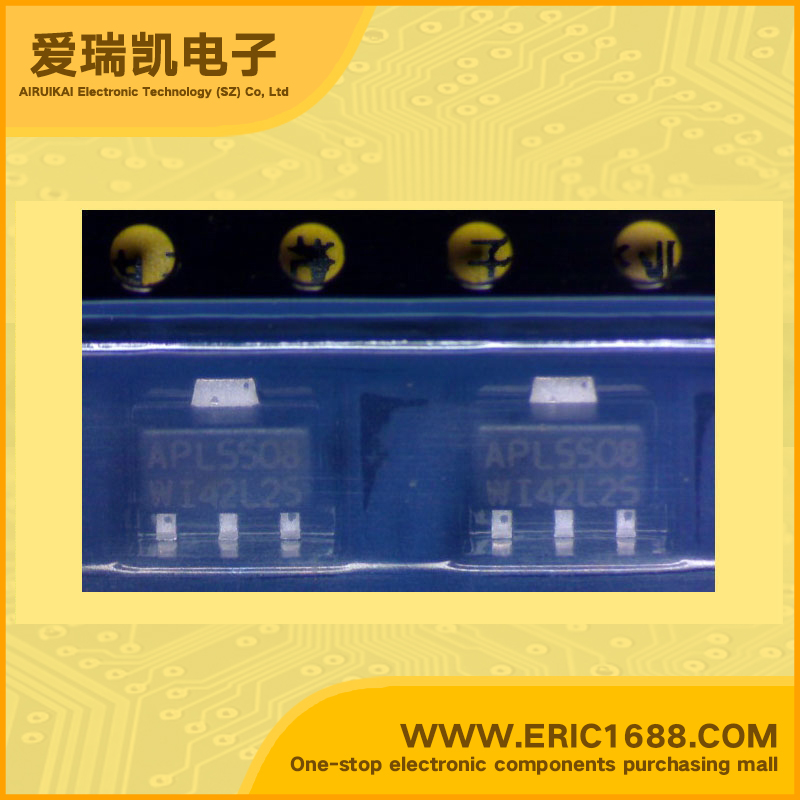

APL5508-25DC-TRL LDO Voltage Regulator 2.5V 700mV/0.7V SOT-89 marking APL5508 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 560mA/0.56A |
| 最大压降VDO Voltage - Dropout | 700mV/0.7V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Low IQ, Low Dropout 560mA Fixed Voltage Regulator ；•Low Quiescent Current : 60µA (No load) •Low Dropout Voltage : 600mV (@560mA) •Very low Shutdown Current : < 0.5uA •Fixed Output Voltage : 1.5V ~ 4.5V •by step 0.1V increment •Stable with 1uF Output Capacitor •Stable with Aluminum, Tantalum or CeramicCapacitors . •No Protection Diodes Needed •Built in Thermal Protection •Built in Current Limit Protection •Controlled Short Circuit Current : 50mA •Fast Transient Response |
| 描述与应用 | 低IQ，低压降固定电压稳压560毫安;•低静态电流：60μA（空载） •低压差：600MV（560毫安） •极低的关断电流：<0.5uA的 •固定输出电压：1.5V〜4.5V •一步0.1V增量 •稳定与1uF的输出电容器 稳定的铝，钽或CeramicCapacitors的的。 •无需保护二极管 •内置热保护 •内置电流限制保护 •控制短路电流：50mA •快速瞬态响应 |
