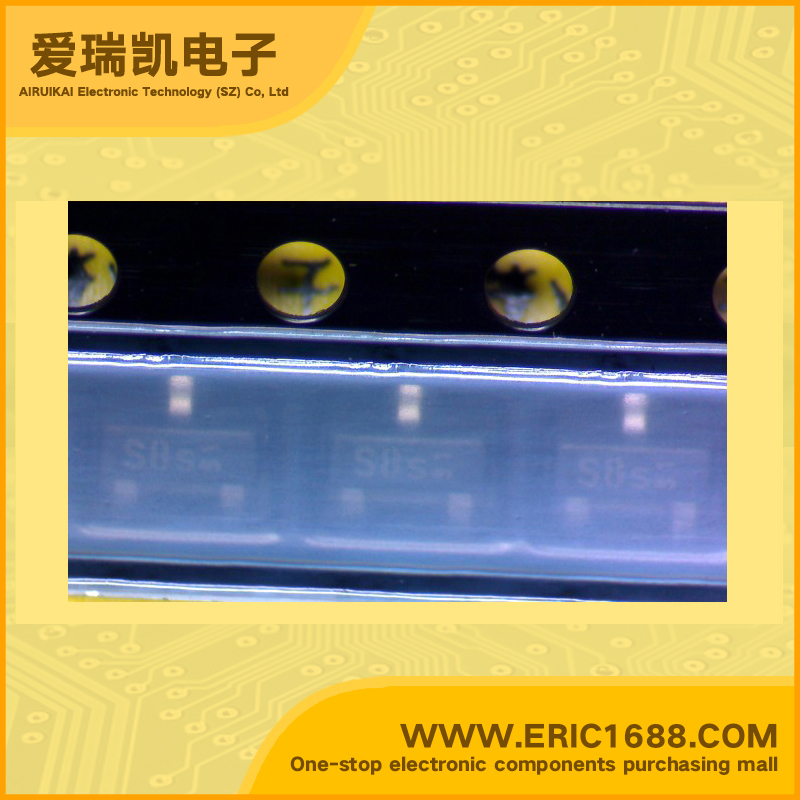

BAT15-04W series connection SBD Schottky Barrier Diodes 4V 110mA/0.11A 320mV/0.32V SOT-323/SC-70 marking S DBS mixer applications to 12 GHz

Model：BAT15-04W
Mark / screen / code / typing：S
Manufacturer：
Date Code：06+NOPB
Package：SOT-323/SC-70
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	4V
平均整流电流Io AVerage Rectified Current	110mA/0.11A
最大正向压降VF Forward Voltage(Vf)	320mV/0.32V
最大耗散功率Pd Power dissipation	100MW/0.1W
Description & Applications	• DBS mixer applications to 12 GHz • Low noise figure • Low barrier type • Schottky barrier diode in series.
描述与应用	•DBS混频器应用到12 GHz •低噪声系数 •低门槛类型 •肖特基势垒二极管串联。

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
BAT15-099 SBD Schottky Barrier Diodes 4V 110mA/0.11A 320mV/0.32V SOT-23/SC-59 marking S5 DBS mixer applications to 12 GHz	BAT15-099 Mark：S5 Package：SOT-23/SC-59	-	Batch number：03+	0 Min Order:10
BAT165 SBD Schottky Barrier Diodes 40V 750mA/0.75A 580mV/0.58V SOD323/SC-76/USC/0805 marking C	BAT165 Mark：C Package：SOD323/SC-76/USC/0805	-	Batch number：08+ROHS 03+	0 Min Order:10
BAT17 SBD Schottky Barrier Diodes 4V 30mA 600mV/0.6V SOT-23/SC-59 marking A3 low forward voltage UHF mixer	BAT17 Mark：A3 Package：SOT-23/SC-59	-	Batch number：05+1R05ROHS 03+	12000 Min Order:10
BAT17 SBD Schottky Barrier Diodes 4V 130mA/0.13A 425mV/0.425V SOT-23/SC-59 marking 53s mixer applications in VHF/UHF range	BAT17 Mark：53s Package：SOT-23/SC-59	-	Batch number：06+3krohs 06+	107750 Min Order:10
BAT17-04 series connection SBD Schottky Barrier Diodes 4V 130mA/0.13A 425mV/0.425V SOT-23/SC-59 marking 54 mixer applications in VHF/UHF range	BAT17-04 Mark：54 Package：SOT-23/SC-59	-	Batch number：05+ 05+	0 Min Order:10
BAT17-05 common anodeSBD Schottky Barrier Diodes 4V 130mA/0.13A 425mV/0.425V SOT-323/SC-70 marking 55 mixer applications in VHF/UHF range	BAT17-05 E6327 Mark：55s Package：SOT-23	-	Batch number：05+ 05+	57600 Min Order:10
BAT17-06 common cathodeSBD Schottky Barrier Diodes 4V 130mA/0.13A 425mV/0.425V SOT-23/SC-59 marking 56S mixer applications in VHF/UHF range	BAT17-06 Mark：56S Package：SOT-23/SC-59	-	Batch number：05+	6000 Min Order:10
