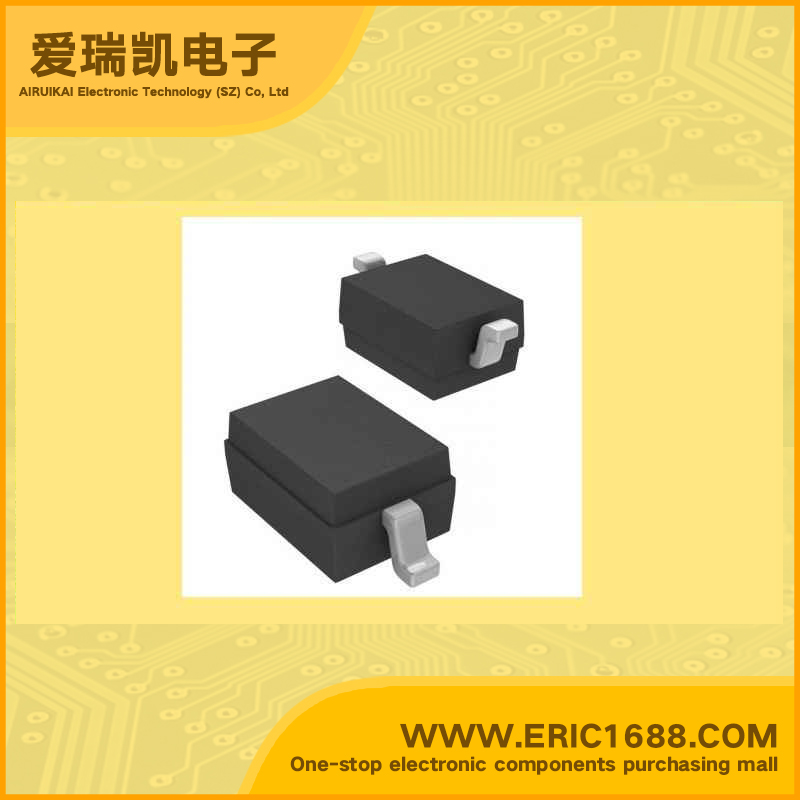

BAT54H SBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOD323/SC-76/USC/0805 marking jv ESD protection fast switch

Model：BAT54H
Mark / screen / code / typing：jv
Manufacturer：
Date Code：09+6KNOPB
Package：SOD323/SC-76/USC/0805

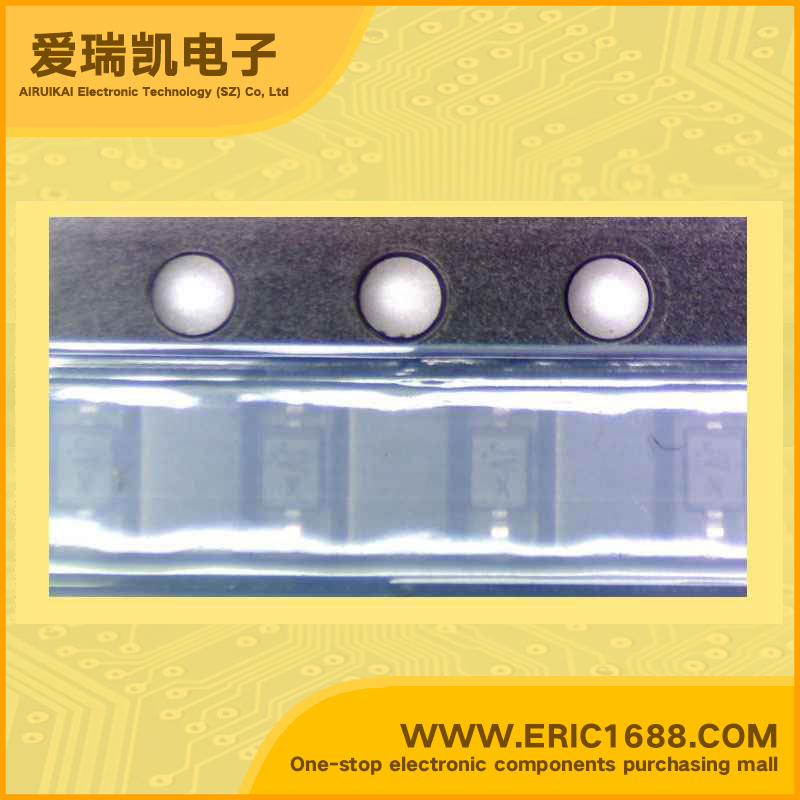

Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	30V
平均整流电流Io AVerage Rectified Current	200mA/0.2A
最大正向压降VF Forward Voltage(Vf)	800mV/0.8V
最大耗散功率Pd Power dissipation	200MW/0.2W
Description & Applications	• Extremely Fast Switching Speed • Low Forward Voltage − 0.35 Volts (Typ) @ IF = 10 mAdc · Common Cathode Schottky barrier diode
描述与应用	•极快的开关速度 •低正向电压 - 0.35伏特（Typ）@ IF=10 MADC ·共阴极肖特基势垒二极管

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
BAT54PT SBD Schottky Barrier Diodes 30V 200mA/0.2A 1V SOT-23/SC-59 marking LV4 low forward voltage fast switch	BAT54PT Mark：LV4 Package：SOT-23/SC-59	-	Batch number：05+	27000 Min Order:10
BAT54R SBD Schottky Barrier Diodes 30V 200mA/0.2A 520mV/0.52V SOT-23/SC-59 marking P4/LV3 low forward voltage fast switch	BAT54R Mark：P4/LV3 Package：SOT-23/SC-59	-	Batch number：05+	6000 Min Order:10
BAT54RSLT1G series connection SBD Schottky Barrier Diodes 30V 200mA/0.2A 520mV/0.52V SOT-23/SC-59 marking LD fast switch	BAT54RSLT1G Mark：LD Package：SOT-23/SC-59	-	Batch number：05nopb	0 Min Order:10
BAT54S-7 series connection SBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOT-23/SC-59 marking KL4 fast switch	BAT54S-7 Mark：KL4 Package：SOT-23/SC-59	-	Batch number：05	0 Min Order:10
BAT54Sw series connection SBD Schottky Barrier Diodes 40V 300mA/0.3A 900mV/0.9V SOT-323/SC-70 marking D78 low forward voltage fast switch	BAT54Sw Mark：D78 Package：SOT-323/SC-70	-	Batch number：05NOPB	0 Min Order:10
BAT54SW series connection SBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOT-323/SC-70 marking 44T low forward voltage fast switch	BAT54SW Mark：44T Package：SOT-323/SC-70	-	Batch number：05+NOPB	0 Min Order:10
BAT54TA SBD Schottky Barrier Diodes 30V 200mA/0.2A 400mV/0.4V SOT-23/SC-59 marking L4 low forward voltage fast switch	BAT54TA Mark：L4 Package：SOT-23/SC-59	-	Batch number：05+ 07+ROHS	438000 Min Order:10
