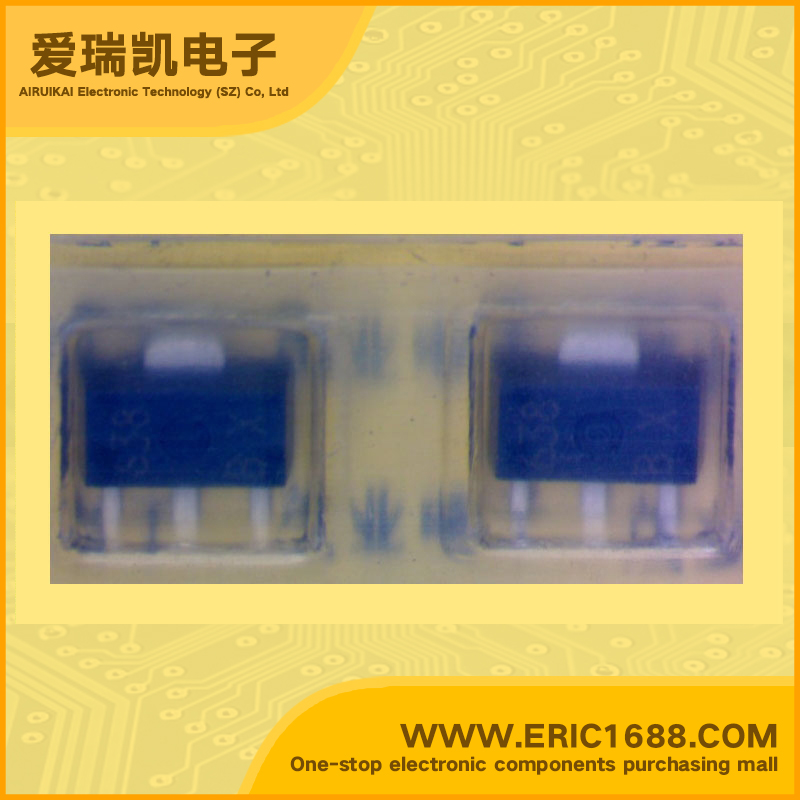

Thyristor,SCR BCR08AS-12A 2V SOT-89 marking BX
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM Repetitive peak reverse voltage/Repetitive peak off-state voltage | 600V |
| 通态平均电流IT(AV) Average on-state current | |
| 通态最大电流IT(RMS) RMS on-state current | 0.8A |
| 栅极触发电压VGT Gate trigger voltage | 2V |
| 栅极触发电流IGT Gate trigger current | 5mA-10mA |
| 保持电流IH Holding current | |
| 峰值通态电压VTM On-state voltage | 2V |
| 重复峰值断态电流IDRM Repetitive peak off-state current | 2mA |
| 浪涌电流ITSM(50Hz、60Hz) Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A |
| Description & Applications | Features Triac Low Power Use IT (RMS) : 0.8 A VDRM : 600 V IFGTI, IRGTI, IRGT III : 5 mA IFGT III : 10 mA Non-Insulated Type Planar Passivation Type Surface Mounted type Completed Pb Free Applications Hybrid IC, solid state relay, electric fan, washing machine, and other general purpose control applications |
| 描述与应用 | 特点 三端双向可控硅开关元件的低功耗使用 IT（RMS）：0.8 A VDRM：600 V IFGTI IRGTI，IRGT三：5毫安 IFGT III：10毫安 非绝缘型 平面钝化类型 表面安装型 已完成无铅 应用 混合IC，固态继电器，电风扇，洗衣机，以及其他通用控制应用 |
