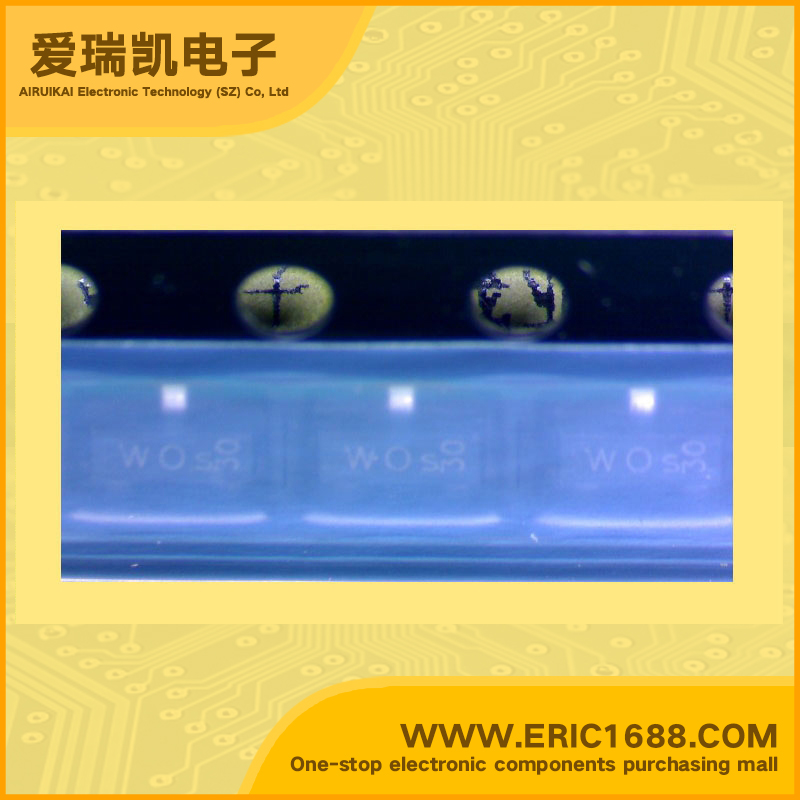

BCR191W PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 50 0.25W/250mW SOT-323/SC-70 marking WO switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
电阻比(R1/R2) Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)50
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.25W/250mW
Description & ApplicationsFeature • PNP Silicon Digital Transistor • Switching circuit, inverter, interface circuit, driver circuit • Built in bias resistor (R1= 22kΩ , R2= 22kΩ) • For 6-PIN packages: two (galvanic) internal isolated transistors with good matching in one package
描述与应用特点 •PNP硅数字晶体管 •开关电路,逆变器,接口电路,驱动电路 •内置偏置电阻(R1=22KΩ,R2=22KΩ) •对于6-PIN封装:2(电流)的内部具有良好的匹配隔离晶体管在一个封装中
