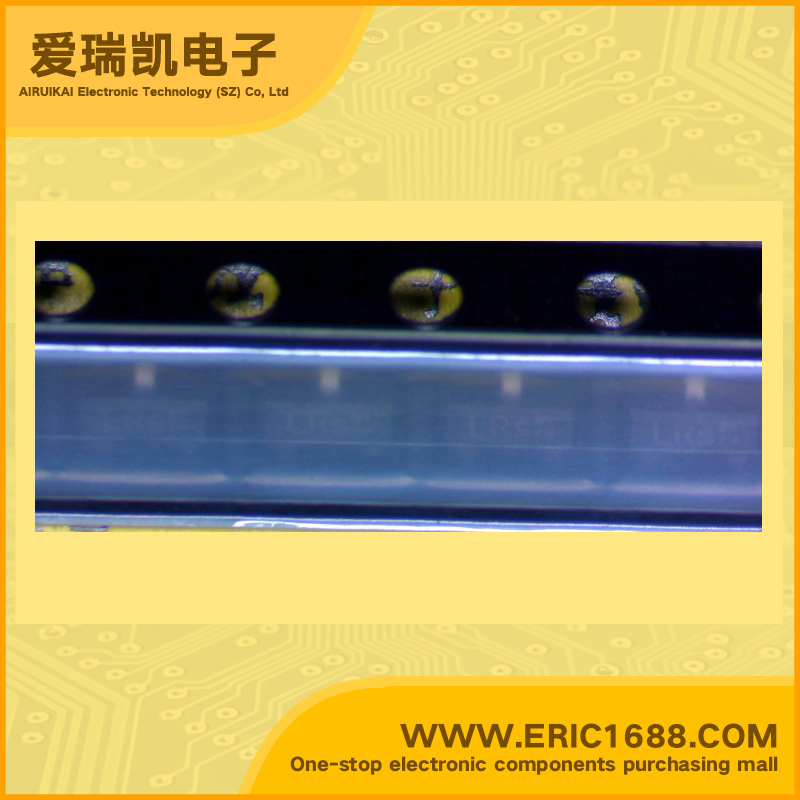

BF517 NPN Transistors(BJT) 20V 25mA 1Ghz~2GHz 25~250 100-500mV SOT-23/SC-59 marking LR amplifier and oscillator
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流IC Collector Current(IC) | 25mA |
| 截止频率fT Transtion Frequency(fT) | 1Ghz~2GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 25~250 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 100-500mV |
| 耗散功率Pc Power Dissipation | 280mW/0.28W |
| Description & Applications | NPN Silicon RF Transistor For amplifier and oscillator applications in TV-tuners |
| 描述与应用 | NPN硅RF晶体管 放大器和振荡器 电视信号接收器中的应用程序 |
