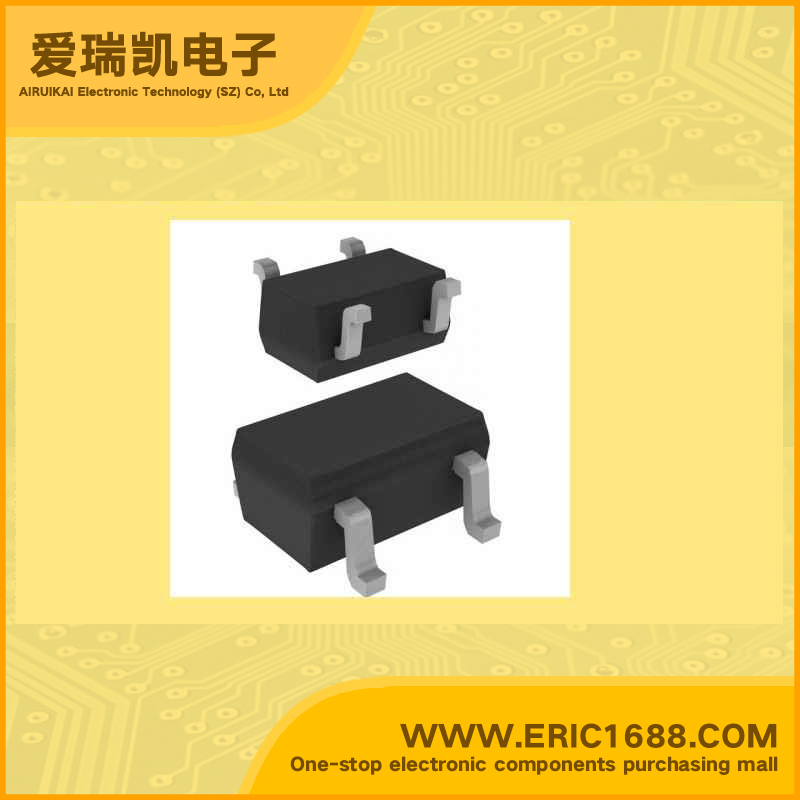

RF amplifier BGA612 SOT-343 marking BN
| 频率 Frequency | 0Hz~2.8GHz |
| P1dB | 7dBm |
| 增益 Gain | 16.3dB |
| 噪声系数 Noise Figure | 2.1dB |
| RF 类型 RF Type | 手机，CDMA，W-CDMA，PCS，EGSM Cellular, CDMA, W-CDMA, PCS, EGSM |
| 电源电压 Voltage - Supply | 2.8V |
| 电源电流 Current - Supply | 80mA |
| 测试频率 Test Frequency | 2GHz |
| Description & Applications | FEATURES • Silicon Germanium Broadband MMIC Amplifier • Cascadable 50Ω-gain block • 3 dB-bandwidth: DC to 2.8 GHz with 17.0 dB typical gain at 1.0 GHz • Compression point P-1dB= 7 dBm at 2.0 GHz • Noise figure F50Ω = 2.35 dB at 2.0 GHz • Absolute stable • 70 GHz fT - Silicon Germanium technology Applications • Driver amplifier for GSM/PCS/CDMA/UMTS • Broadband amplifier for SAT-TV & LNBs • Broadband amplifier for CATV |
| 描述与应用 | 特点 •硅锗宽带MMIC放大器 •级联50Ω增益块 •3分贝带宽：DC17.0 dB典型增益为1.0 GHz到2.8 GHz •压缩点P-1分贝=7 dBm的2.0 GHz的 •噪声系数F50Ω=2.35 dB，在2.0 GHz的 •绝对稳定 •70 GHz的FT - 硅锗技术 应用 •驱动器放大器，用于GSM/ PCS/ CDMA/ UMTS •宽带放大器SAT-TV的LNB •CATV宽带放大器 |
