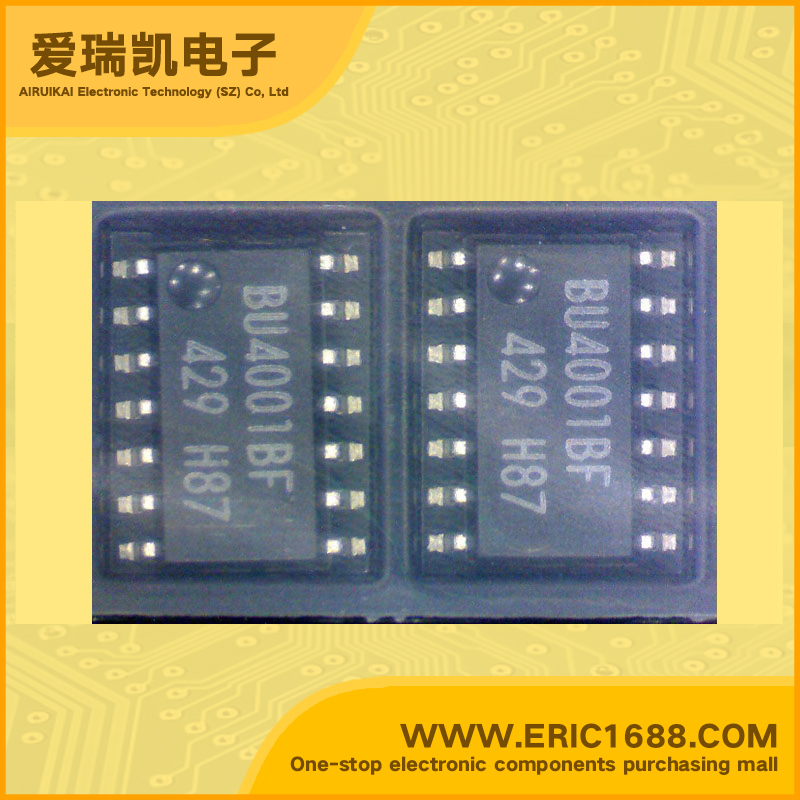

Integrated Circuit（IC） NOR gate BU4001BF-E2 SOP14 marking
| 逻辑类型 Logic Type | 或非门 NOR Gate |
| 电路数 Number of Circuits | 4 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 3V~16V |
| 静态电流Iq Current - Quiescent (Max) | 4uA |
| 输出高，低电平电流 Current - Output High, Low | -1.2mA，3mA |
| 低逻辑电平 Logic Level - Low | 1.5V~4V |
| 高逻辑电平 Logic Level - High | 3.5V~11V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 40ns @ 15V，50pF |
| Description & Applications | Quad 2-input NOR gate；Features Low power dissipation Wide range of operating power supply voltage High input impedance High fan-out Direct drive of 2 L-TTL inputs and 1 LS-TTL input |
| 描述与应用 | 四路双输入或非门;特性 低功耗 工作电源电压范围宽 高输入阻抗 高扇出 直接驱动2 L-TTL输入和1 LS-TTL输入 |
