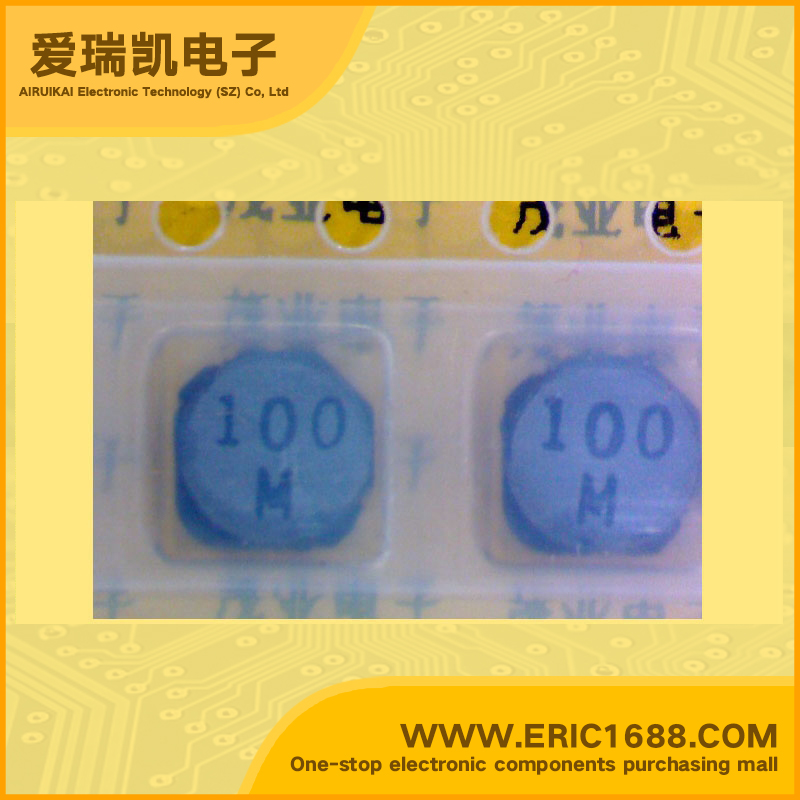

power conductor CDPH4D19FNP-100MC 10uH 4m-100

Hot selling goods

Product description
Q值
Q Value
电感值
Inductance
10uH
误差
Tolerance
±20%
额定电流
Current Rating
800mA
饱和电流
Current - Saturation
DC电阻DCR
DC Resistance (DCR)
0.065Ω/Ohm
Description & Applications◆ Product Description ・5.2×5.2mm Max. (L×W), 2.0mm Max. height ・Inductance Range : 3.3~47μH ・Rated Current Range : 0.36~1.5A ・In addition to the standard versions of inductors shown here,custom inductors are available to meet your exact requirement ◆ Feature ・Magnetically shielded construction. ・Ideally Used in Notebook PC,MP3, Mobile Phone, DSC/DVC, etc as DC-DC Converter inductors. ・RoHS Compliance and Halogen free.
描述与应用◆产品描述 ·5.2×5.2毫米最大。 (长×宽),2.0MM最大。高度 ·电感值范围:3.3〜47μH ·额定电流范围:0.36〜1.5A ·除了标准版本的电感在这里显示,自定义电感器可满足您的具体要求 ◆特征 ·磁屏蔽结构。 ·理想的情况下使用笔记本电脑,MP3,手机,数码相机/摄像机,DC-DC转换器电感器等。 ·符合RoHS指令及无卤素。
