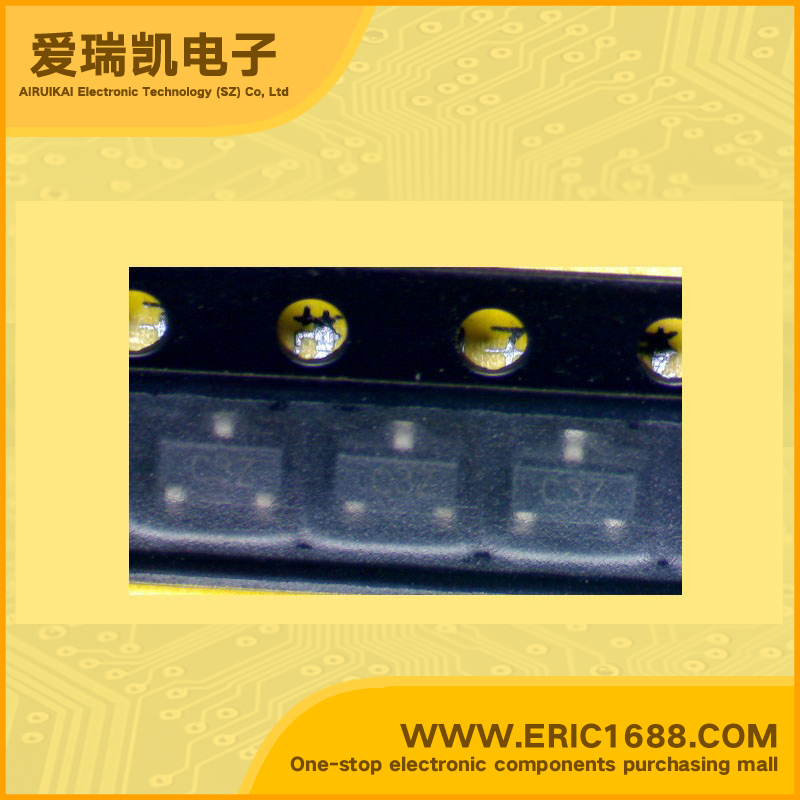

CMPTA44TR NPN Transistors(BJT) 450V 300mA/0.3A 20MHz 50~200 750mV/0.75V SOT-23/SC-59 marking C3Z high voltage

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
450V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
400V
集电极连续输出电流IC
Collector Current(IC)
300mA/0.3A
截止频率fT
Transtion Frequency(fT)
20MHz
直流电流增益hFE
DC Current Gain(hFE)
50~200
管压降VCE(sat)
Collector-Emitter Saturation Voltage
750mV/0.75V
耗散功率Pc
Power Dissipation
350mW/0.35W
Description & ApplicationsNPN SILICON EXTREMELY HIGH VOLTAGE TRANSISTOR The CENTRAL SEMICONDUCTOR CMPTA44 type is a surface mount epoxy molded silicon planar epitaxial transistors designed for extremely high voltage applications.
描述与应用NPN硅能力的 高压晶体管 该中央半导体CMPTA44的类型是一个表面贴装环氧树脂成型硅平面外延晶体管为极高电压应用设计。
