CPH6313 MOSFET P-Channel -20V -4A 0.0055ohm SOT-163 marking ultra high-speed switch 2.5V drive

Model：CPH6313

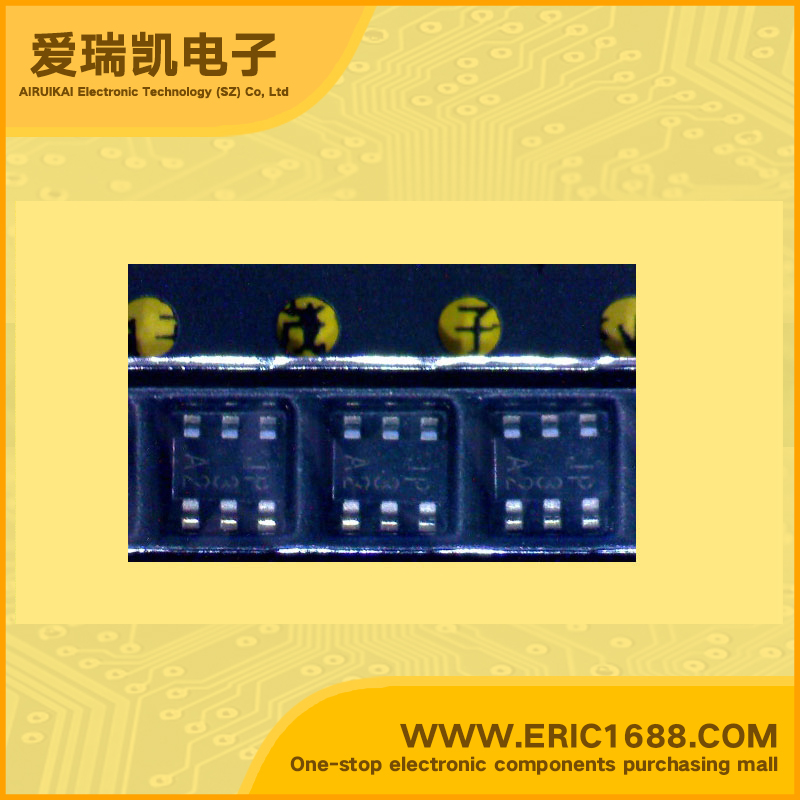

Mark / screen / code / typing：
Manufacturer：
Date Code：03NOPB 03+NOPB

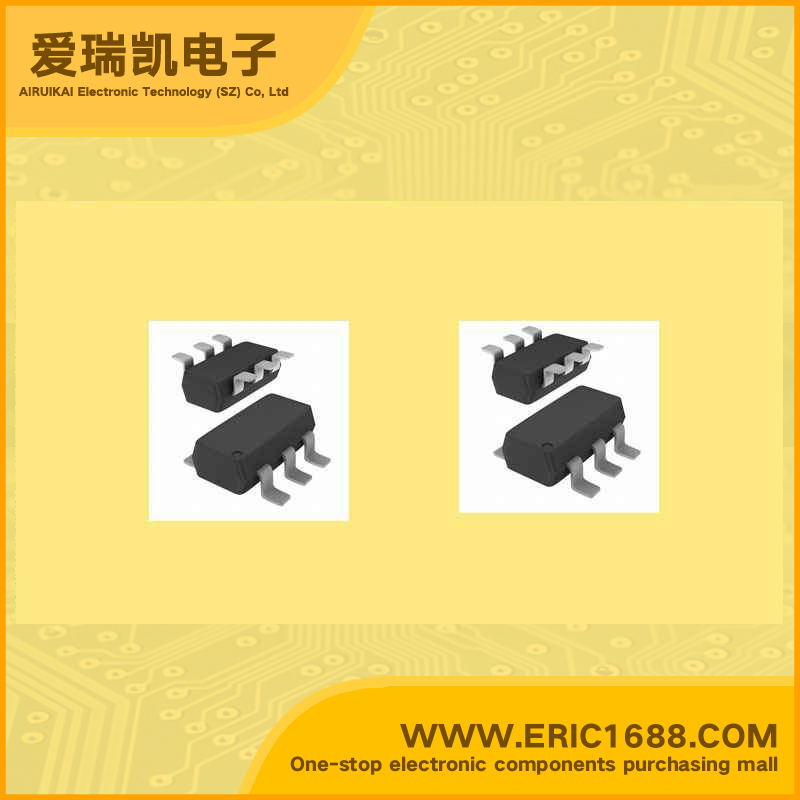

Package：SOT-163/SOT23-6/CPH6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	10V
最大漏极电流Id Drain Current	-4A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.0055Ω @-2A,-4.5V
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.4--1.4V
耗散功率Pd Power Dissipation	1.6W
Description & Applications	Features Low ON resistance. Ultrahigh-speed switching. 2.5V drive.
描述与应用	低导通电阻。超高速开关。 2.5V驱动器
