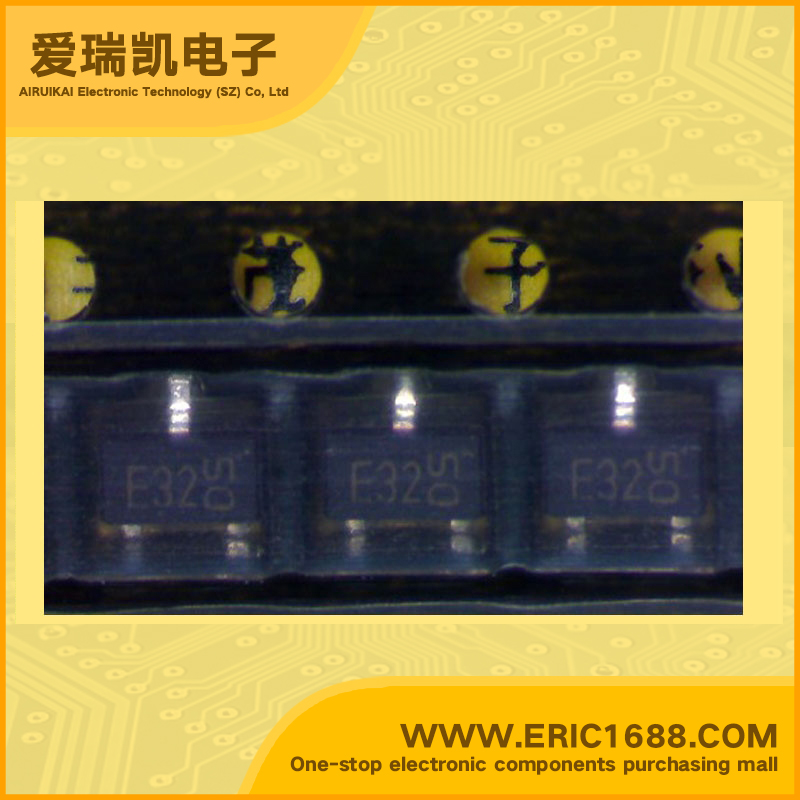

DTA123JKA PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 0.2W/200mW SOT-23/SC-59/SMT3 marking E32 switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)2.2KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.047
直流电流增益hFE DC Current Gain(hFE)
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeatures •Built-In Biasing Resistors •Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). •The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. •Only the on/off conditions need to be set for operation, making the circuit design easy. •Complementary NPN Types :DTC123J series •Complex transistors :EMB10/ UMB10N/ IMB10A Inner circuit / EMA5/ UMA5N/ FMA5A (PNP type) •Lead Free/RoHS Compliant. Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
描述与应用特点 •内置偏置电阻 •内置偏置电阻,可配置逆变电路没有连接外部 输入电阻(见等效电路)。 •偏置电阻组成的薄膜电阻完全隔离,允许负偏置输入的。它们还具有的优点是完全消除了寄生效应。 •只有开/关条件需要设置操作,使得电路的设计容易。 •互补NPN类型:DTC123J系列 •复杂的晶体管:EMB10 UMB10N// IMB10A的内部电路                          / EMA5/ UMA5N的/ FMA5A的(PNP型) •无铅/ RoHS标准。 应用 开关电路,逆变电路,接口电路,驱动器电路
