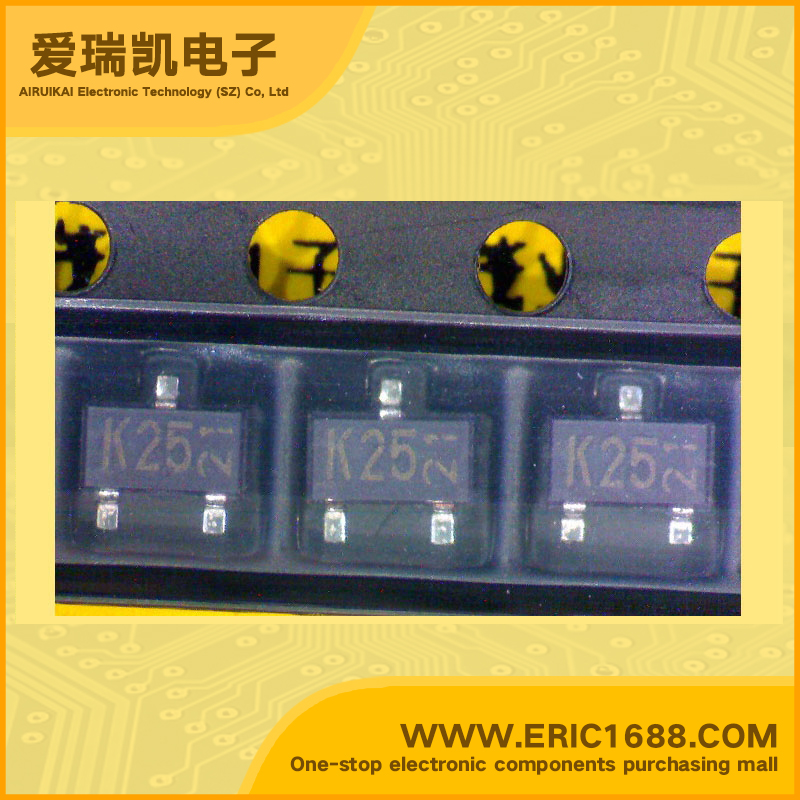

DTC124GK NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 22k SOT-23/SC-59/SMT3 marking K25

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)56
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeatures 1) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 2) Only the on/off conditions need to be set for operation, making device design easy 3)Higher mounting densities can be achieved
描述与应用特性 1)偏置电阻组成的薄膜电阻完全隔离,允许负偏置输入。他们也有优势,几乎完全消除了寄生效应。 2)只有开/关条件需要设置操作,使装置的设计容易 3)可以实现高密度安装
