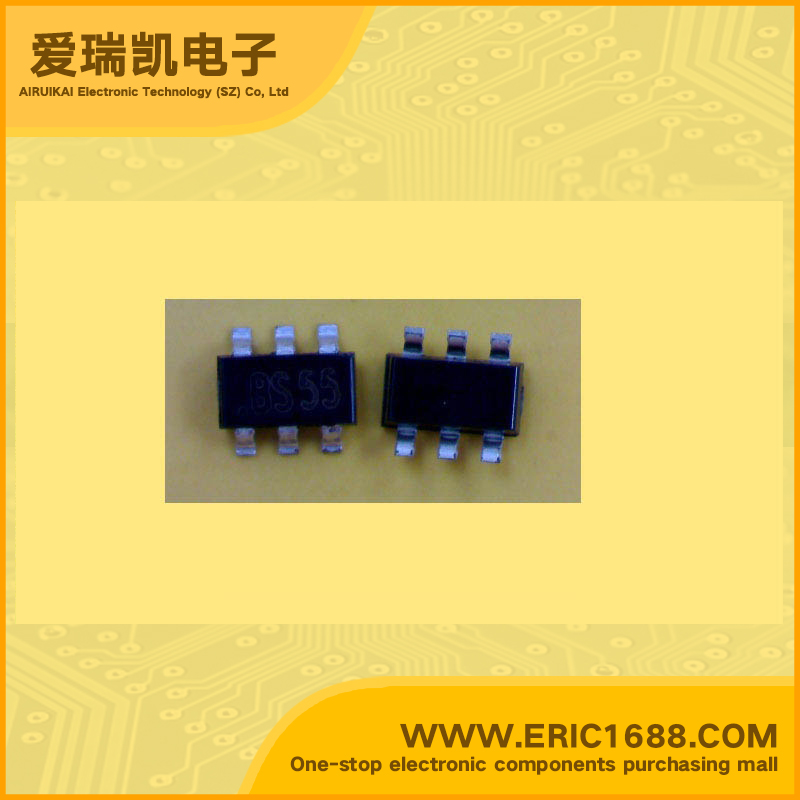

ESDA6V1BC6 TVS/ESD 5V SOT-163/SOT23-6 marking BS55
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.1V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 80W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | QUAD BIDIRECTIONAL TRANSIL SUPPRESSOR FOR ESD PROTECTION;FEATURES •4 BIDIRECTIONAL TRANSIL FUNCTIONS •ESD PROTECTION FOR DATA, SIGNAL ANDVCC BUS •STAND OFF VOLTAGE RANGE: ± 5 V MIN •LOW LEAKAGE CURRENT < 1 µA •PEAK PULSE POWER ( 8/20 ) = 80W |
| 描述与应用 | 四路双向TRANSIL 抑制器ESD保护;特性 •4通道双向TRANSIL功能 •对于数据，信号ANDVCC总线ESD保护 •关断电压范围：±5 V最小。 •低漏电流<1μA •峰值脉冲功率（8/20）=80W |
