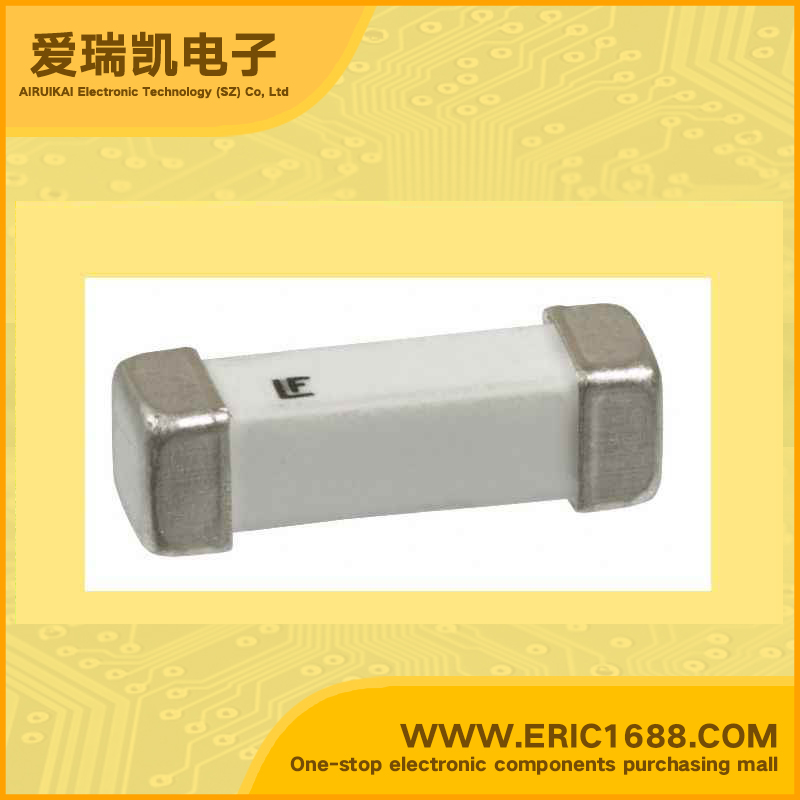

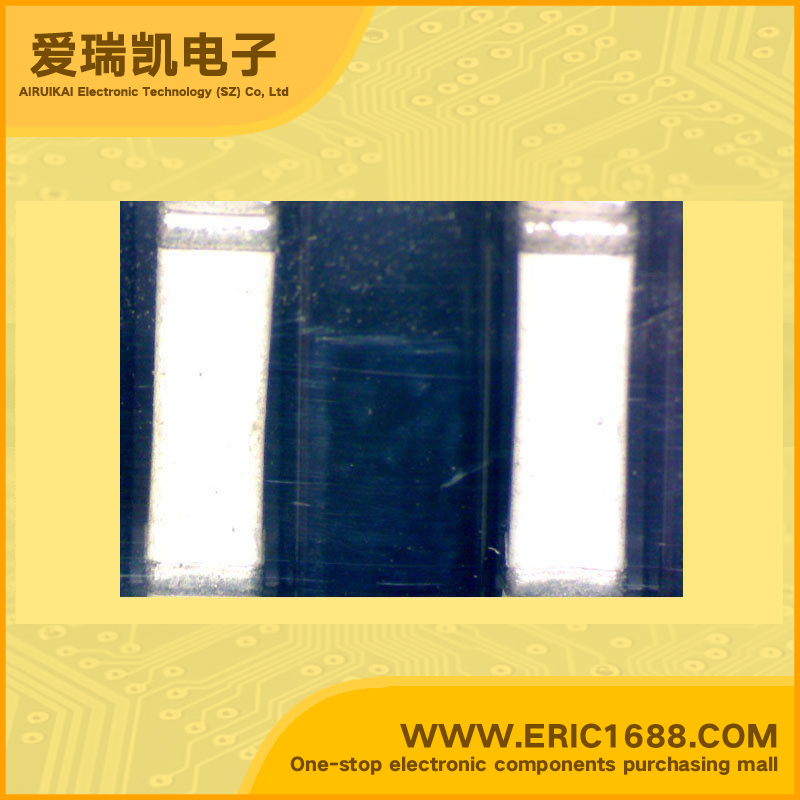

Slow Blow Acting fuse F0500TRP 1.25A 250V 大1808
| 额定电流 Current Rating | 1.25A |
| 额定电压AC Voltage Rating - AC | 250V |
| 额定电压DC Voltage Rating - DC | |
| 分断能力 Interrupting Rating | 60A |
| 熔断积分I2T (A2sec) Melting I²t | |
| Description & Applications | TeleLink® SM Fuse Product Description The TeleLink® Surface Mount (SM) surge resistant time lag fuse has been designed to offer the ultimate in circuit protection while meeting the necessary surge requirements of the telecommunications industry. When used in conjunction with the SIDACtor® Transient Voltage Suppressor (TVS), the TeleLink SM fuse (F0500T 500mA and F1250T 1.25A) and the SIDACtor TVS provide a complete regulatory compliant solution for standards such as GR 1089, FCC Part 68, UL 1950, and ITU K.20 & K.21. Features • Surface Mount Technology • 100A, 10x1000µs & 500A, 2x10µs surge current ratings • Eliminates the need for costly power resistors and PTC’s • Designed specifically for telecommunications equipment |
| 描述与应用 | TELELINK®SM保险丝 产品描述 TELELINK®表面贴装（SM）的抗浪涌时间 滞后保险丝已在电路设计提供极致 同时满足必要的浪涌保护 对电信行业的要求。何时 一起使用的SIDACtor®瞬态电压 抑制器（TVS），通传讯SM熔断器的（F0500T500毫安的 F1250T1.25A）的SIDACtor TVS提供 完整的监管等标准兼容的解决方案 作为GR 1089，FCC第68部分，UL 1950，ITU K.20和K.21。 •表面贴装技术 •100A，10x1000μs500A，2x10μs浪涌电流额定值 •无需昂贵的电源电阻器和PTC •专为电信设备 |
