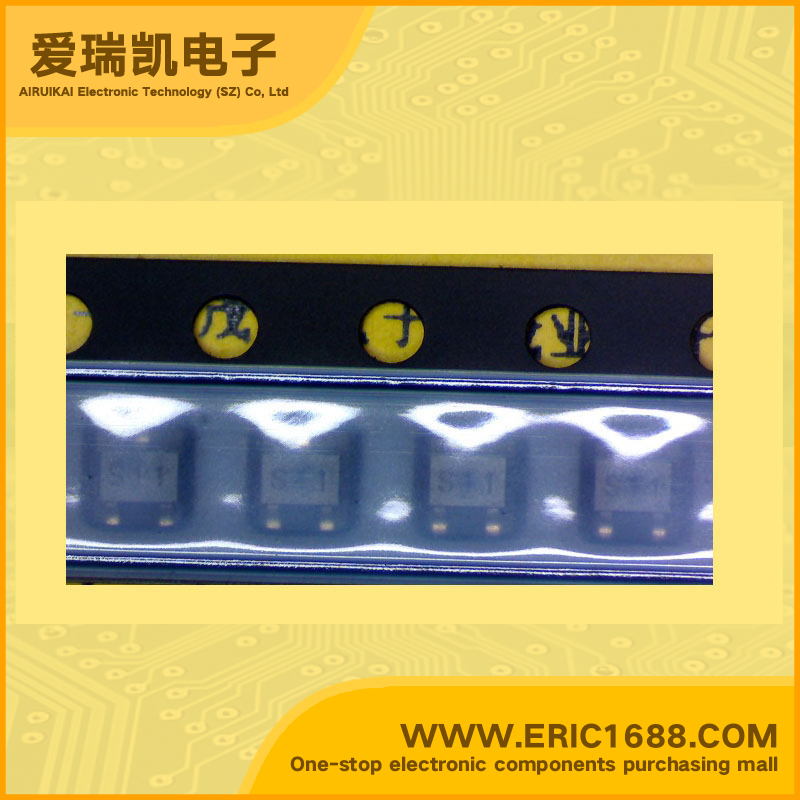

FJX3011RTF NPN Bipolar Digital Transistor (BRT) 40V 100mA/0.1A 22k SOT-323/SC-70 marking S11 switching circuit inverter interface circuit driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)40V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)40V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)100
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeatures • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor (R=22KΩ) • Complement to FJX4011R
描述与应用特性 •开关电路,逆变器,接口电路,驱动器电路 •内置偏置电阻(R=22KΩ) •FJX4011R的补充
