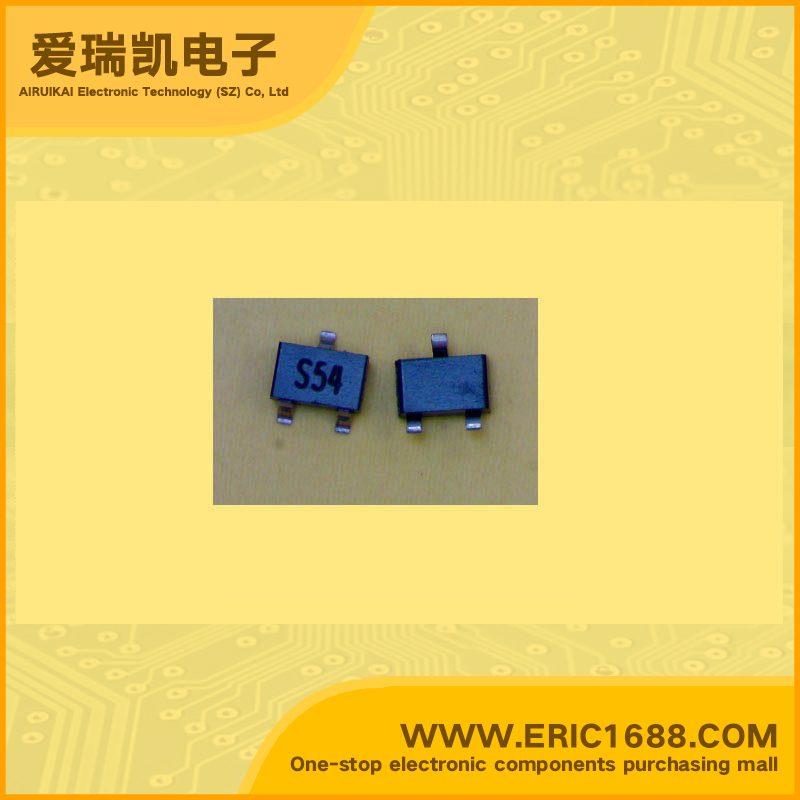

FJX4004RTF PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 68 0.2W/200mW SOT-323/SC-70 marking S54 switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)68
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeatures • Switching Application (Bias Resistor Built In) • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor (R1=47KΩ, R2=47KΩ) • Complement to FJX3004R
描述与应用特点 •开关应用(偏置电阻内置) •开关电路,逆变器,接口电路,驱动器电路 •内置偏置电阻(R1=47KΩ,R2=47KΩ) •到FJX3004R补
