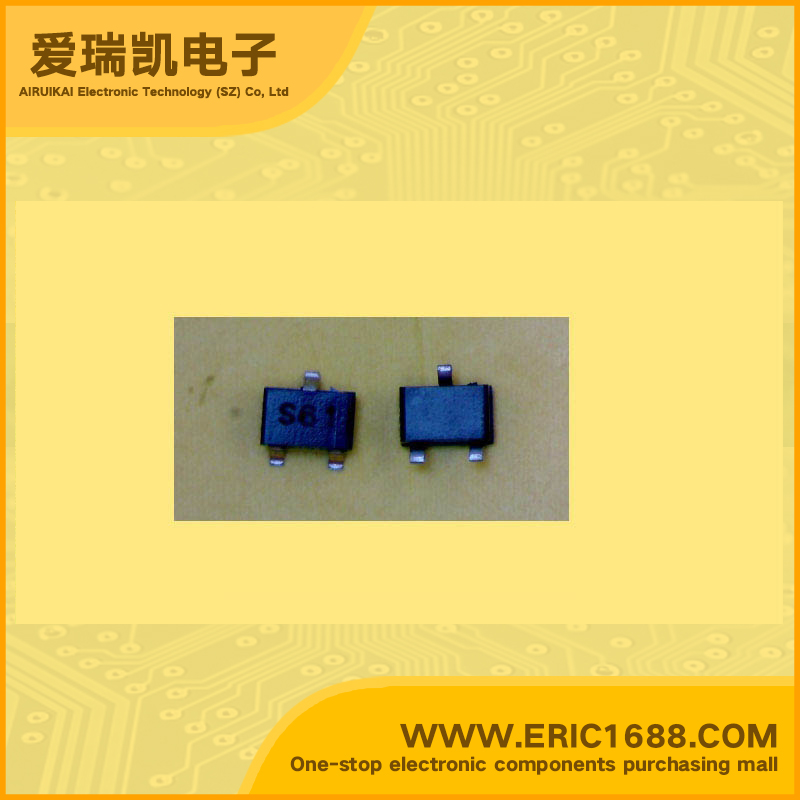

FJX4011RTF PNP Bipolar Digital Transistor (BRT) -40V -100mA/-0.1A 100~600 0.2W/200mW SOT-323/SC-70 marking S61 switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -40V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 22KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| 电阻比(R1/R2) Resistance Ratio | |
| 直流电流增益hFE DC Current Gain(hFE) | 100~600 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Features • Switching Application (Bias Resistor Built In) • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor (R=22KΩ) • Complement to FJX3011R |
| 描述与应用 | 特点 •开关应用（偏置电阻内置） •开关电路，逆变器，接口电路，驱动器电路 •内置偏置电阻（R=22KΩ） •到FJX3011R补 |
