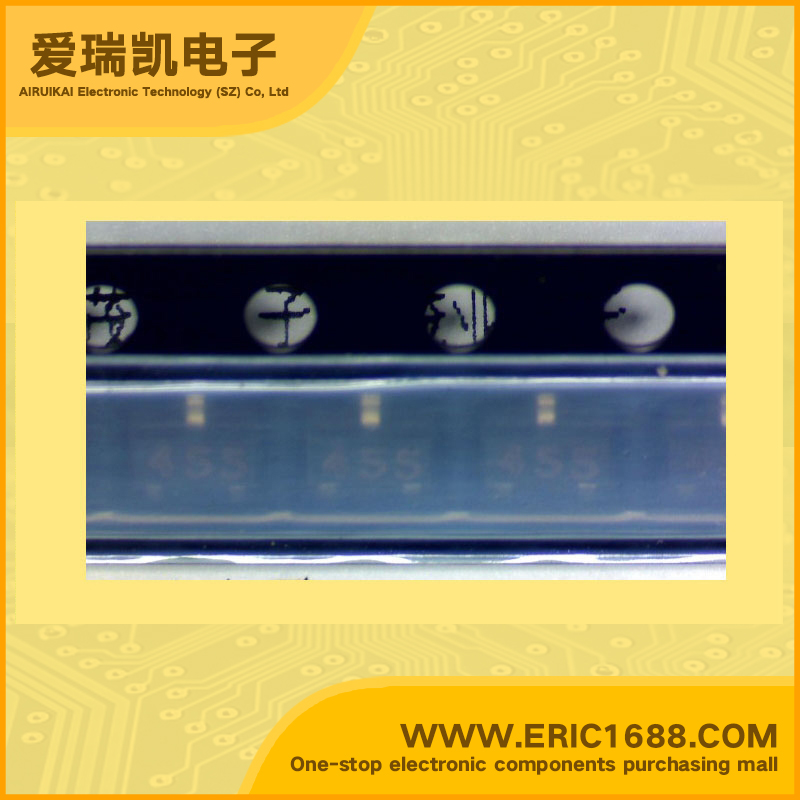

FMMT455TA NPN Transistors(BJT) 160V 1A 100MHz 100~300 700mV/0.7V SOT-23/SC-59 marking 455
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 160V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 140V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 700mV/0.7V |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | SOT23 NPN SILICON PLANAR HIGH PERFORMANCE TRANSISTOR 1 Amp continuous current Ptot= 500 mW |
| 描述与应用 | SOT23 NPN硅平面高性能晶体管 1安培连续电流 |
