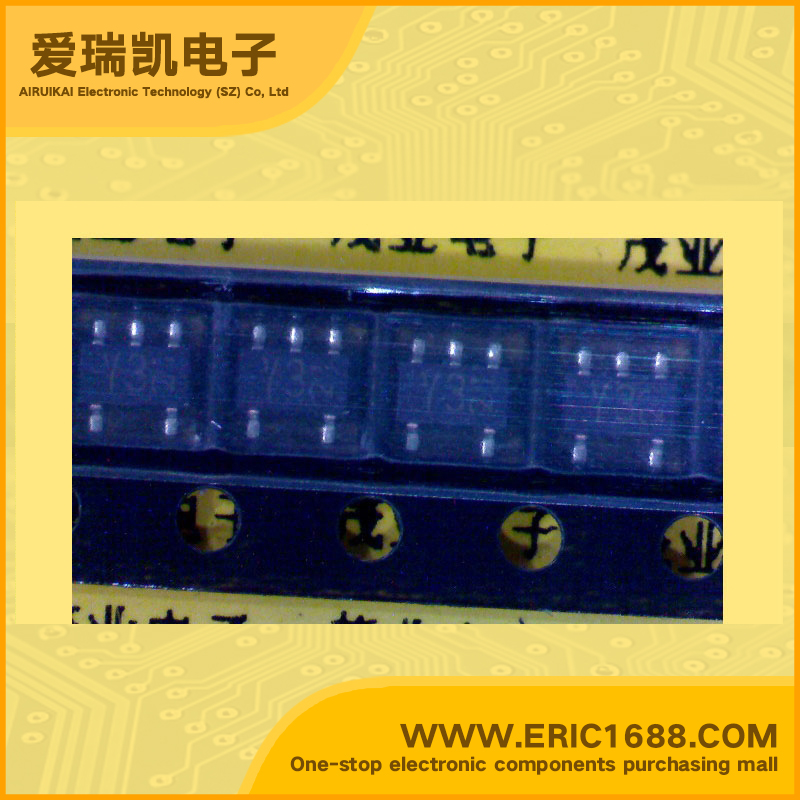

FMY3 PNP+NPN Complex Bipolar Transistor -60V/60V -150mA/150mA 120~560 SOT-153/SMT5/SC-74A marking Y3 switch and digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -60V/60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V/50V |
| 集电极连续输出电流IC Collector Current(IC) | -150mA/150mA |
| 截止频率fT Transtion Frequency(fT) | 140MHz/180MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~560 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | -500mV/400mV |
| 耗散功率Pc Power Dissipation | 300mW |
| Description & Applications | Features •Power management(dual transistors) •both a 2SA1037AK and a 2SC2412K chip in a UMT or SMT package. |
| 描述与应用 | 特点 •电源管理（双晶体管） •一个2SA1037AK芯片和2SC2412K芯片在UMT或SMT封装 |
