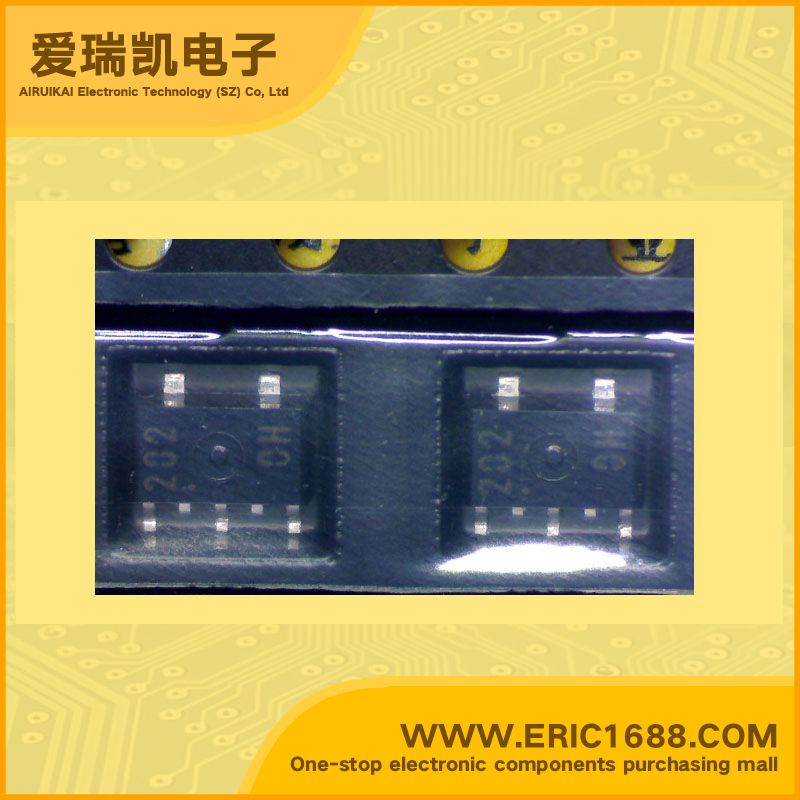

FP202-TL PNP+NPN Complex Bipolar Transistor -60V/60V -500mA/500mA 140~400 PCP5 marking 202 switch and digital circuit application

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-60V/60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V/50V
集电极连续输出电流IC Collector Current(IC)-500mA/500mA
截止频率fT Transtion Frequency(fT)250MHz
直流电流增益hFE DC Current Gain(hFE)140~400
管压降VCE(sat) Collector-Emitter Saturation Voltage-100mV/70mV
耗散功率Pc Power Dissipation1000mW
Description & ApplicationsFeatures • PNP/NPN Epitaxial Planar Silicon Transistor • Push-Pull Circuit Applications • Composite type with 2 transistors (PNP and NPN) contained in one package facilitating high-density mounting. • The FP202 is formed with a chip being equivalent to the 2SA1338 and a chip being equivalent to the 2SC3392, placed in one package.
描述与应用特点 •PNP/ NPN平面外延硅晶体管推挽电路应用 •复合型2个晶体管(PNP和NPN) •包含在一个包装促进高密度安装。 •FP202相当于一个芯片上形成有2SA1338和芯片等效于的2SC3392,放置在一个包装。
