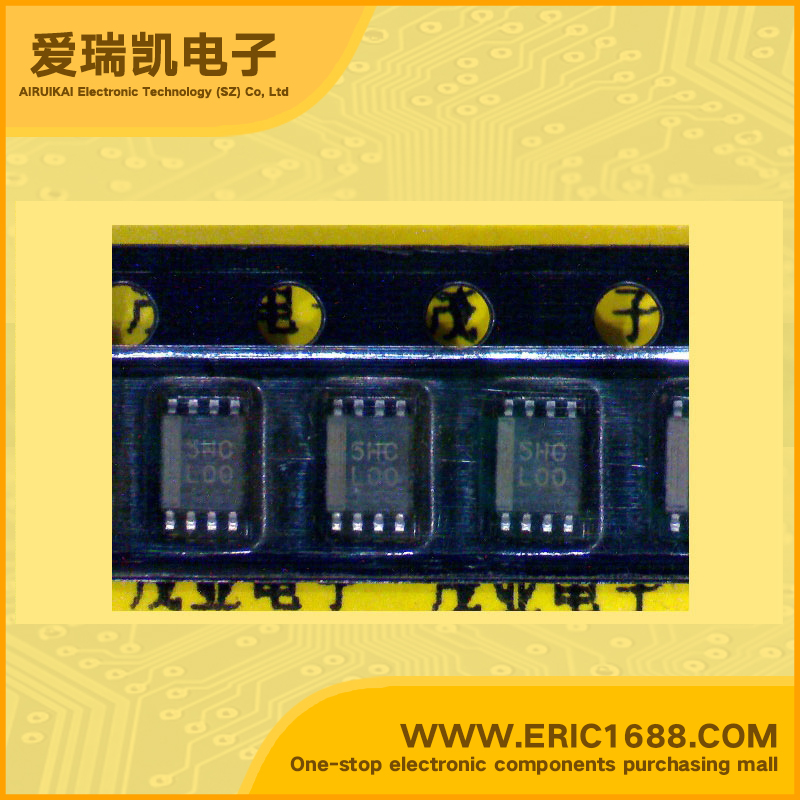

Integrated Circuit(IC) NAND gate HD74LV2G00AUSE SSOP8 marking L00

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-12mA,12mA
低逻辑电平
Logic Level - Low
0.1V~0.55V
高逻辑电平
Logic Level - High
1.4V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4.9ns @ 5V,50pF
Description & ApplicationsDual 2–input NAND Gates;Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74LV00A Supply voltage range : 1.65 to 5.5 V Operating temperature range : –40 to +85°C All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) All the logical input has hysteresis voltage for the slow transition
描述与应用双路双输入与非门;特性 基本的门函数是列为瑞萨单项逻辑系列 提供压纹盘带高速自动安装 相当于HD74LV00A电特性 电源电压范围:1.65 - 5.5 V 工作温度范围:- -40 + 85°C 所有输入VIH(最大)= 5.5 V(@VCC = 0 V 5.5 V) 所有输出VO(最大)= 5.5 V(@VCC = 0 V) 输出电流±6mA(@VCC = 3.0 V至3.6 V),±12mA(@VCC = 4.5 V至5.5 V) 所有的逻辑输入有滞后电压缓慢过渡
