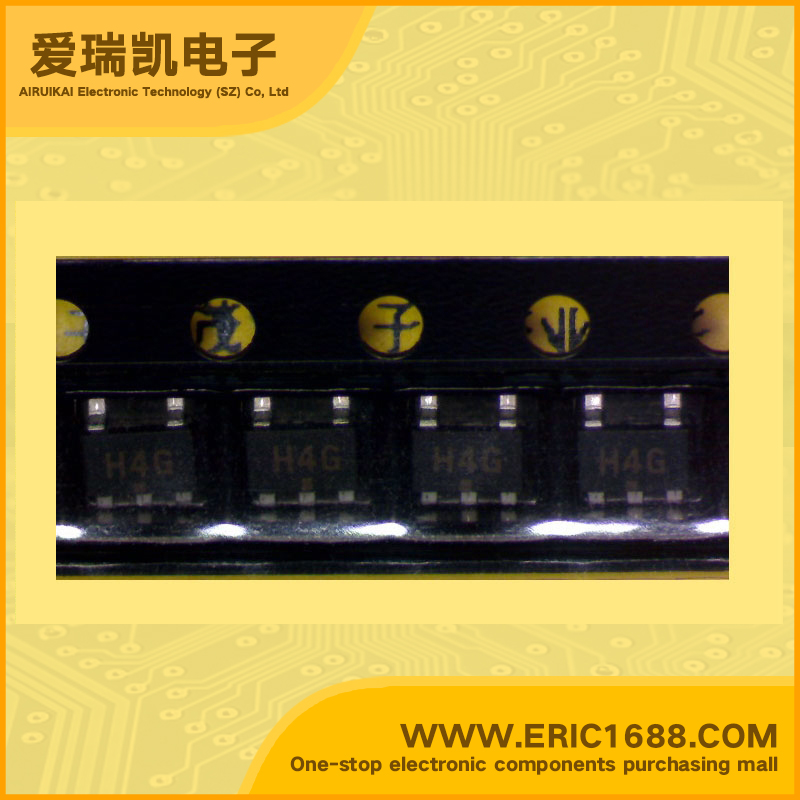

Integrated Circuit(IC) OR gate HD74UH32EL SOT-153/MPAK-5V marking H4

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5V~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
12ns @ 4.5V,50pF
Description & Applications2-input OR Gate;Features Encapsulated in very small 5pins package of 2.9 ×1.6 ×1.1 mm, the efficiency to mount on substrate is significantly improved The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74HC32 Supply voltage range: 2 to 6 V Operating temperature range: –40 to +85°C | IOH | = IOL = 2 mA (min)
描述与应用2输入或门;特性 封装在非常小的5PINS包装2.9×1.6×1.1毫米,安装在基板效率显著提高 基本门功能一字排开瑞萨单向逻辑系列 提供压纹高速自动安装盘带 电气特性相当于HD74HC32 电源电压范围:2到6 V 工作温度范围:-40至+85°C | IOH= IOL=2 mA(最小)
