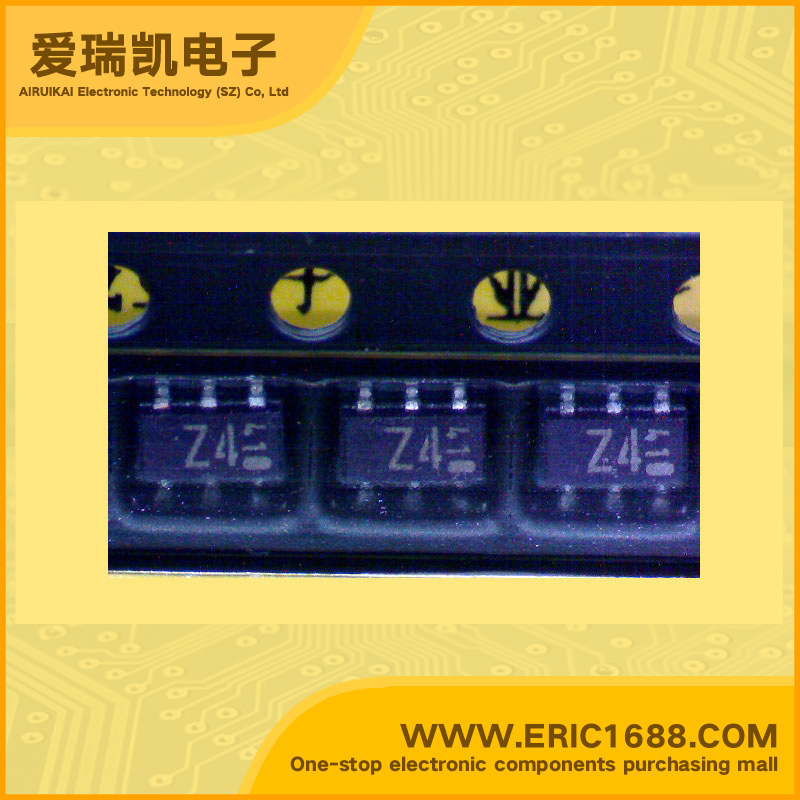

IMZ4 NPN+PNP Complex Bipolar Transistor 40V/-40V 500mA/-500mA 120~560 SOT-163/SMT6/SC-74 marking Z4 switch and digital circuit application

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 40V/-40V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 32V/-32V
集电极连续输出电流IC Collector Current(IC) 500mA/-500mA
截止频率fT Transtion Frequency(fT) 250MHz/200MHz
直流电流增益hFE DC Current Gain(hFE) 120~560
管压降VCE(sat) Collector-Emitter Saturation Voltage 600mV/-600mV
耗散功率Pc Power Dissipation 300mW
Description & Applications Features • General purpose transistor (dual transistors) • Includes a 2SA1036K and a 2SC411K transistor in a SMT package. • Mounting possible with SMT3 automatic mounting machines. • Transistor elements are independent, eliminating interference. • High collector current. IC=500mA • Mounting cost and area can be cut in half.
描述与应用 特点 •通用晶体管(双晶体管) •在SMT包装包括一个2SA1036K的和一个2SC411K晶体管。 •安装可能与SMT3可能自动装配机。 •晶体管元素是独立的,消除干扰。 •高集电极电流。 IC=500毫安 •安装成本和面积可减少一半。
